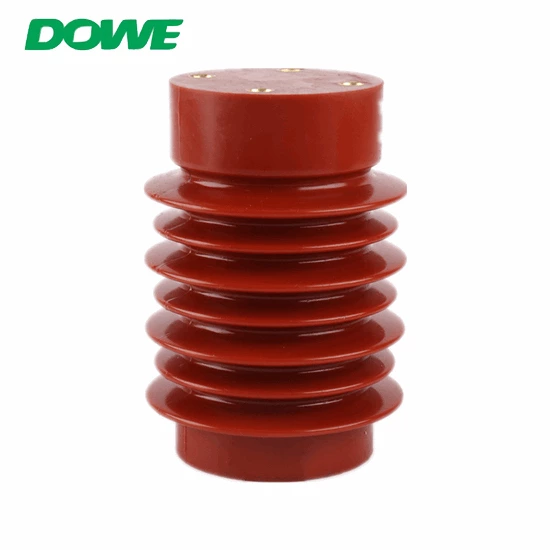

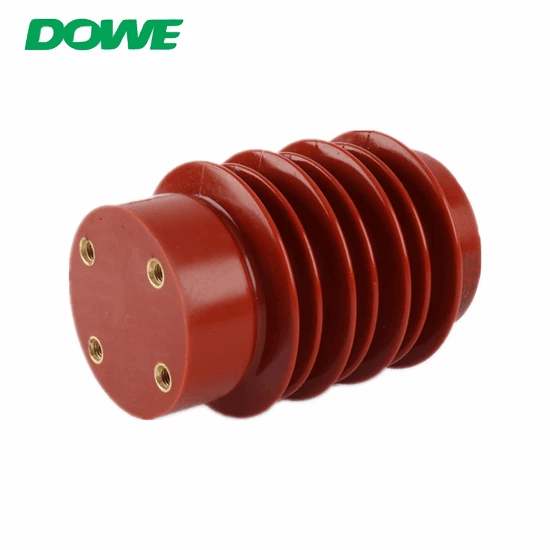

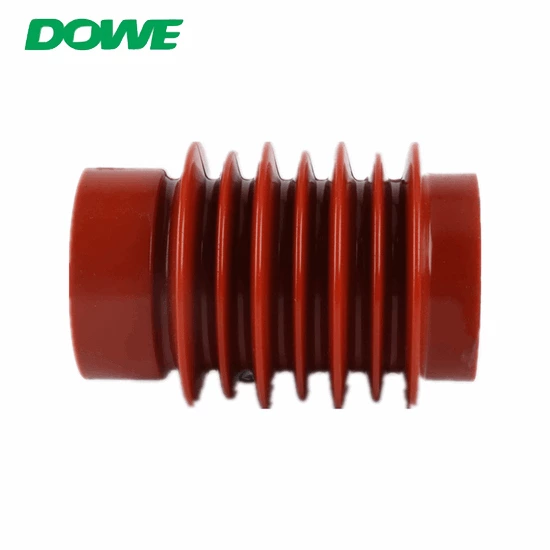

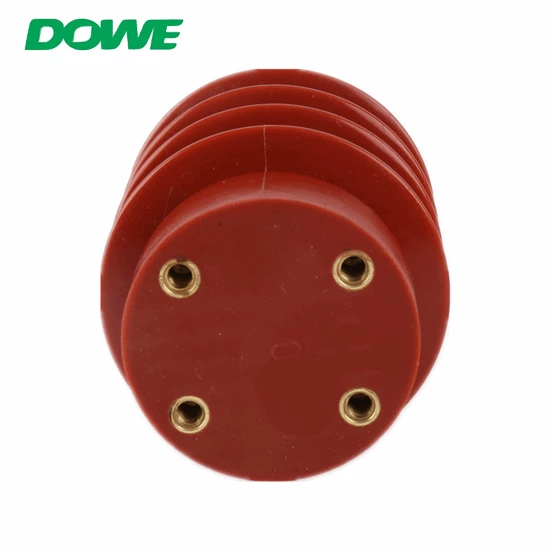

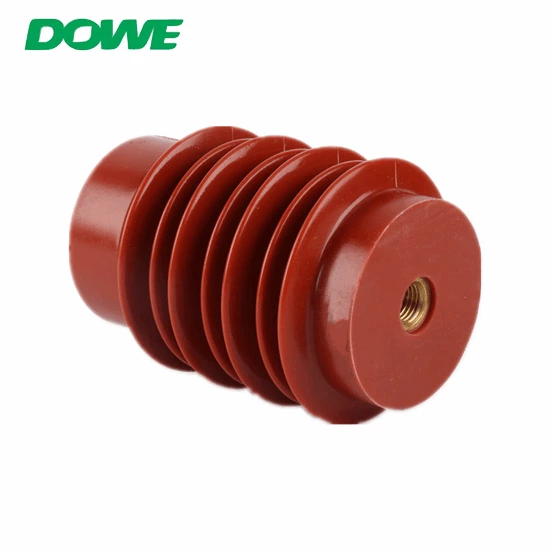

DUWAI 10KV 140 145 150 170 High Voltage Sensor with 4 Hole Charged Live Displaying Device DXN Transducer for Switchgear
- CG5-10Q 100X140
- Epoxy resin
- 2 pcs
1、Color: support red ,brown or other customsized
2、Insert: support brass,steel or other
3、Model: support OEM model
High voltage sensor insulator description
The high-voltage sensor extracts a certain voltage from the high-voltage charged circuit by pumping the capacitor core rod as the power supply for display and blocking, which is used to reflect the charged state of the device setting, and can forcibly lock and switch the net door. The work of voltage indication and forced locking are controlled by the same high voltage signal, but the circuit system is independent of each other. As long as the high voltage circuit is charged, even if the display circuit and the locking circuit fail at the same time, the electromagnetic lock is still in the locked state. Therefore, the product has high reliability and high safety.
The sensor is epoxy resin cast pillar type insulator type product. It can be used as isolating switch, grounding switch and other post insulators. It has the characteristics of high strength, strong arc resistance, and small partial discharge.
The insulation sensor mainly suitable for power, energy, industry, infrastructure and other industries
By express/By sea/By air/By land transportation
The seller provides 2 samples for free, and the buyer pays the freight
