DOWE BTR-2 Series 250a / 400a / 630a 3p Netral Fuse Base Low Voltage Vertical Fuse Rail And Fuse Base For Busbar
The latest conjoined type switch safely closes three-phase circuits with a fuse handle, has a flame-retardant base (IP30), supports quick installation, and reduced wiring. It offers 100kA breaking force, operates at 1.3 times the rated current, and can include a fuse monitor, signal switch, and remote control module.
1. Conjoined type can be a three-phase closed off simultaneously
2. Operation safely. while fuse installed in the handle and it can be used as a contact blade directly.
3. It is beautiful and practical and the whole switch can be disassemblyed easily. and installed in the cabinet fastly.;
4. Wiring reduced make it easy to increase the loop and the utilization of the cabinet;
5. The resin glass fiber base (BMC-UP(GF15 ). FR/DMC-2).with flame retardant grade. and the enclosure rating up to IP30;
6. The latest product has highest usage in the market.;
7. The instantaneous breaking force is up to 100kA. and the operating capacity with a load can be up to 1.3 times of the rated current;
8. It can be with the fuse monitor. signal switch and a remote control module.

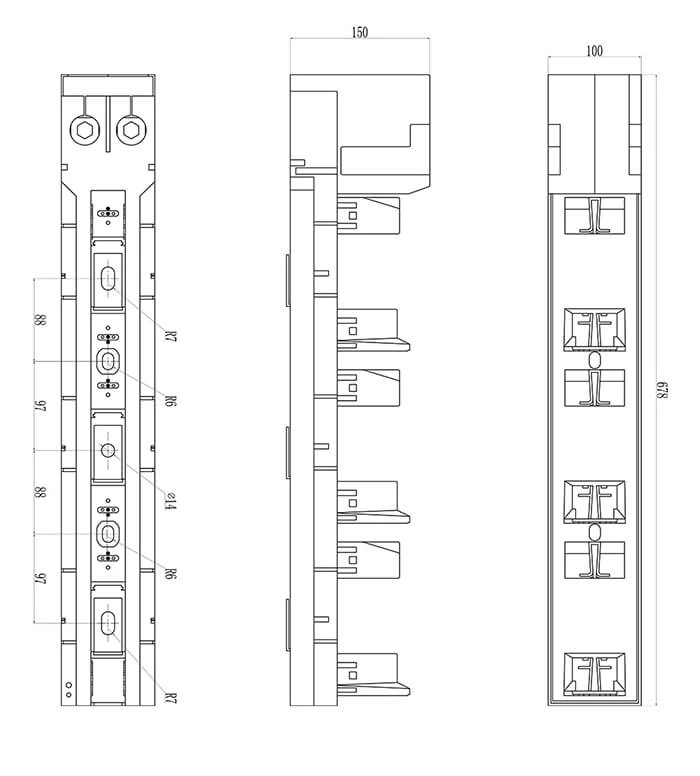

<p style="text-align: center;"> <img alt="" src="/uploads/2407/btr2-6.jpg" style="width: 700px; height: 776px;" /></p>
<p style="text-align: center;"> </p>
<table align="center">
<tbody>
<tr>
<td>Type Of Fuse Switch</td>
<td align="center" colspan="3" valign="middle">BTR2-250E</td>
<td align="center" colspan="3" valign="middle">BTR2-400E</td>
<td align="center" colspan="3" valign="middle">BTR2-630E</td>
</tr>
<tr>
<td>Rated Voltage (Ue)</td>
<td align="center" colspan="9" valign="middle">415, 500, 690V</td>
</tr>
<tr>
<td>Rated Thermal Current (Ith)</td>
<td align="center" colspan="3" valign="middle">250A</td>
<td align="center" colspan="3" valign="middle">400A</td>
<td align="center" colspan="3" valign="middle">630A</td>
</tr>
<tr>
<td>Rated Frequency</td>
<td align="center" colspan="3" valign="middle">50/60Hz</td>
<td align="center" colspan="3" valign="middle">50/60Hz</td>
<td align="center" colspan="3" valign="middle">50/60Hz</td>
</tr>
<tr>
<td>Rated Insulation Voltage(Ui)</td>
<td align="center" colspan="3" valign="middle">1000V</td>
<td align="center" colspan="3" valign="middle">1000V</td>
<td align="center" colspan="3" valign="middle">1000V</td>
</tr>
<tr>
<td>Rated Impulse Withstand<br />
Voltage(Uimp)</td>
<td align="center" colspan="3" valign="middle">10KV</td>
<td align="center" colspan="3" valign="middle">10KV</td>
<td align="center" colspan="3" valign="middle">10KV</td>
</tr>
<tr>
<td rowspan="2">Application Classes</td>
<td align="center" valign="middle">415V</td>
<td align="center" valign="middle">500V</td>
<td align="center" valign="middle">690V</td>
<td align="center" valign="middle">415V</td>
<td align="center" valign="middle">500V</td>
<td align="center" valign="middle">690V</td>
<td align="center" valign="middle">415V</td>
<td align="center" valign="middle">500V</td>
<td align="center" valign="middle">690V</td>
</tr>
<tr>
<td>AC23B</td>
<td>AC22B</td>
<td>AC21B</td>
<td>AC23B</td>
<td>AC22B</td>
<td>AC21B</td>
<td>AC23B</td>
<td>AC22B</td>
<td>AC21B</td>
</tr>
<tr>
<td>Degree Of Protection</td>
<td align="center" colspan="3" valign="middle">IP30</td>
<td align="center" colspan="3" valign="middle">IP30</td>
<td align="center" colspan="3" valign="middle">IP30</td>
</tr>
<tr>
<td>Fuse Size</td>
<td align="center" colspan="3" valign="middle">1</td>
<td align="center" colspan="3" valign="middle">2</td>
<td align="center" colspan="3" valign="middle">3</td>
</tr>
<tr>
<td>Rated Voltage (Ue)</td>
<td align="center" valign="middle">415V</td>
<td align="center" valign="middle">500V</td>
<td align="center" valign="middle">690V</td>
<td align="center" valign="middle">415V</td>
<td align="center" valign="middle">500V</td>
<td align="center" valign="middle">690V</td>
<td align="center" valign="middle">415V</td>
<td align="center" valign="middle">500V</td>
<td align="center" valign="middle">690V</td>
</tr>
<tr>
<td>Rated Working Current(Ie)</td>
<td align="center" valign="middle">250A</td>
<td align="center" valign="middle">250A</td>
<td align="center" valign="middle">200A</td>
<td align="center" valign="middle">400A</td>
<td align="center" valign="middle">400A</td>
<td align="center" valign="middle">350A</td>
<td align="center" valign="middle">630A</td>
<td align="center" valign="middle">630A</td>
<td align="center" valign="middle">500A</td>
</tr>
<tr>
<td>Wire Specifications</td>
<td align="center" colspan="3" valign="middle">120mm²</td>
<td align="center" colspan="3" valign="middle">240mm²</td>
<td align="center" colspan="3" valign="middle">300mm²</td>
</tr>
<tr>
<td>The Default Connection Mode</td>
<td align="center" colspan="9" valign="middle">V-clamp</td>
</tr>
<tr>
<td>The Other Connection Mode</td>
<td align="center" colspan="9" valign="middle">Screw&Cable lug</td>
</tr>
<tr>
<td>Installation Of Busbar</td>
<td align="center" colspan="9" valign="middle">1. Punched rectangle busbar 2. Unpunched rectangle busbar 3. Other</td>
</tr>
<tr>
<td>Fixed Way</td>
<td align="center" colspan="9" valign="middle">1. Screw 2. Hook 3. Other custom accessories</td>
</tr>
</tbody>
</table>
