DOWE MCCB Pan Assembly (MCPD) Copper Busbar Pan Assembly and Busbar Distribution Board For Electrical Distribution
Rated current: 63A-800A Phase: 3P &4P Advantage: It could be assembly according to customer’s requirements, incoming and outgoing MCCB could be arranged at single side or both sides.
Rated current: 63A-800A
Phase: 3P &4P
Advantage: It could be assembly according to customer’s requirements, incoming and outgoing MCCB could be arranged at single side or both sides.

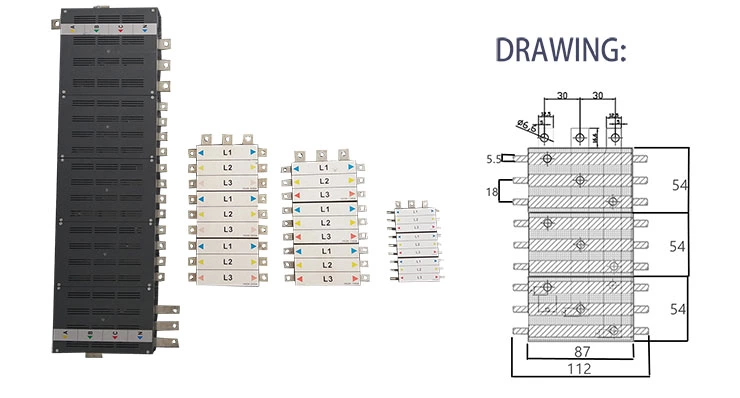

<p style="text-align: center;"><img alt="" src="/uploads/2407/mcpd.jpeg" style="width: 740px; height: 398px;" /></p>

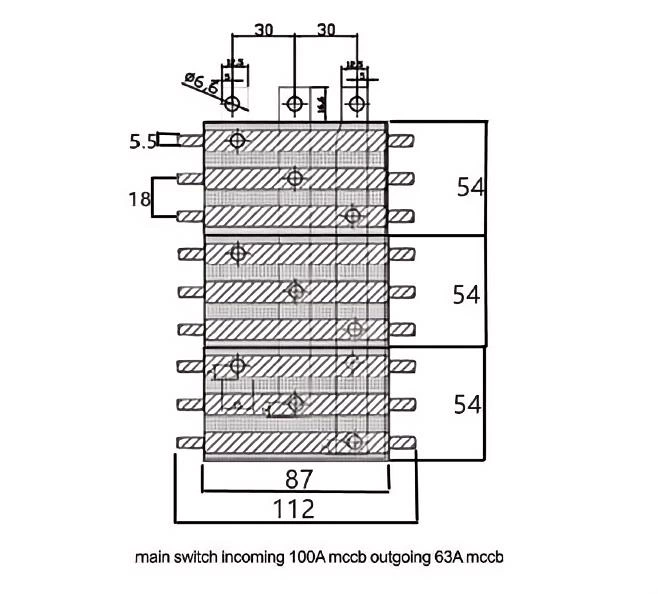

<p style="text-align: center;"><img alt="" src="/uploads/2407/mcpd-2.jpg" style="width: 658px; height: 594px;" /></p>

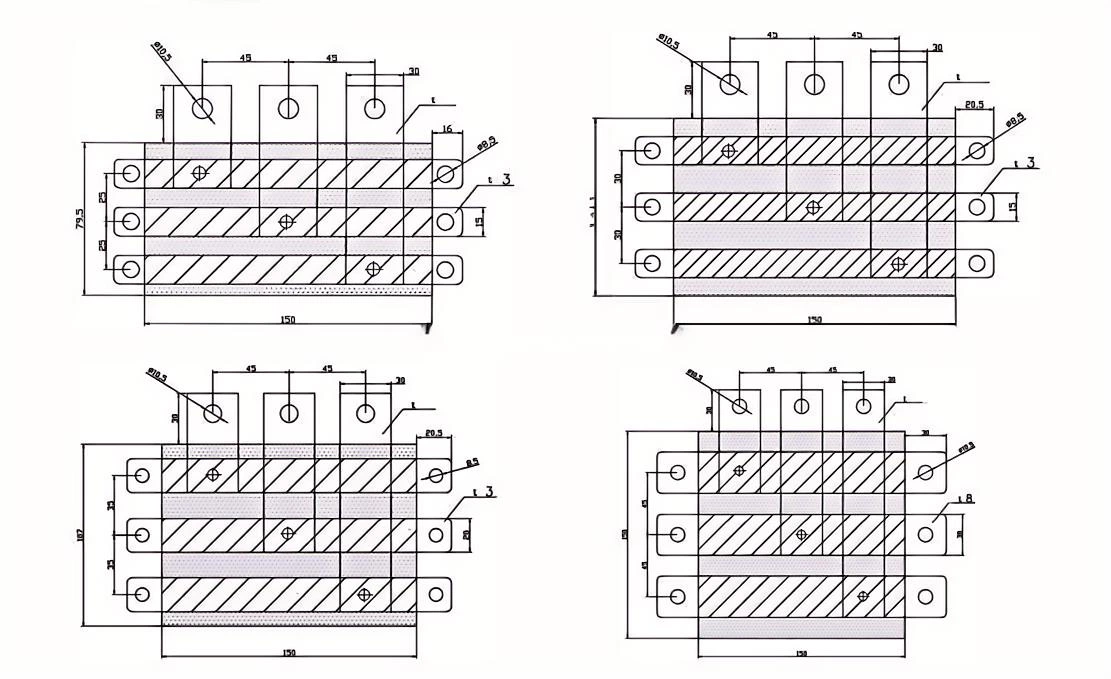

<p style="text-align: center;"><img alt="" src="/uploads/2407/mcpd-3.jpg" style="width: 800px; height: 489px;" /></p>
<table align="center" style="width: 900px;">
<tbody>
<tr>
<td align="center" valign="middle">Model</td>
<td align="center" valign="middle">Incoming Current</td>
<td align="center" valign="middle">Out Going Current</td>
<td align="center" valign="middle">Outgoing Switch Quantity</td>
</tr>
<tr>
<td align="center" valign="middle">SP-400125-4W</td>
<td align="center" valign="middle">400A</td>
<td align="center" valign="middle">125A</td>
<td align="center" valign="middle">4 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-400125-6W</td>
<td align="center" valign="middle">400A</td>
<td align="center" valign="middle">125A</td>
<td align="center" valign="middle">6 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-400125-8W</td>
<td align="center" valign="middle">400A</td>
<td align="center" valign="middle">125A</td>
<td align="center" valign="middle">8 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-400125-10W</td>
<td align="center" valign="middle">400A</td>
<td align="center" valign="middle">125A</td>
<td align="center" valign="middle">10 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-400125-12W</td>
<td align="center" valign="middle">400A</td>
<td align="center" valign="middle">125A</td>
<td align="center" valign="middle">12 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-400125-14W</td>
<td align="center" valign="middle">400A</td>
<td align="center" valign="middle">125A</td>
<td align="center" valign="middle">14 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-400125-16W</td>
<td align="center" valign="middle">400A</td>
<td align="center" valign="middle">125A</td>
<td align="center" valign="middle">16 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-400225-4W</td>
<td align="center" valign="middle">400A</td>
<td align="center" valign="middle">225A</td>
<td align="center" valign="middle">4 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-400225-6W</td>
<td align="center" valign="middle">400A</td>
<td align="center" valign="middle">225A</td>
<td align="center" valign="middle">6 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-400225-8W</td>
<td align="center" valign="middle">400A</td>
<td align="center" valign="middle">225A</td>
<td align="center" valign="middle">8 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-400225-10W</td>
<td align="center" valign="middle">400A</td>
<td align="center" valign="middle">225A</td>
<td align="center" valign="middle">10 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-400225-12W</td>
<td align="center" valign="middle">400A</td>
<td align="center" valign="middle">225A</td>
<td align="center" valign="middle">12 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-400225-14W</td>
<td align="center" valign="middle">400A</td>
<td align="center" valign="middle">225A</td>
<td align="center" valign="middle">14 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-400M-W</td>
<td align="center" valign="middle">400A</td>
<td align="center" valign="middle">125A/225A</td>
<td align="center" valign="middle">6+2 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-400M-W</td>
<td align="center" valign="middle">400A</td>
<td align="center" valign="middle">125A/225A</td>
<td align="center" valign="middle">8+2 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-400M-W</td>
<td align="center" valign="middle">400A</td>
<td align="center" valign="middle">125A/225A</td>
<td align="center" valign="middle">10+2 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-400M-W</td>
<td align="center" valign="middle">400A</td>
<td align="center" valign="middle">125A/225A</td>
<td align="center" valign="middle">2+4 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-400M-W</td>
<td align="center" valign="middle">400A</td>
<td align="center" valign="middle">125A/225A</td>
<td align="center" valign="middle">4+4 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-400M-W</td>
<td align="center" valign="middle">400A</td>
<td align="center" valign="middle">125A/225A</td>
<td align="center" valign="middle">6+4 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-400M-W</td>
<td align="center" valign="middle">400A</td>
<td align="center" valign="middle">125A/225A</td>
<td align="center" valign="middle">4+6 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-400M-W</td>
<td align="center" valign="middle">400A</td>
<td align="center" valign="middle">125A/225A</td>
<td align="center" valign="middle">8+4 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-400M-W</td>
<td align="center" valign="middle">400A</td>
<td align="center" valign="middle">125A/225A</td>
<td align="center" valign="middle">2+6 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-400M-W</td>
<td align="center" valign="middle">400A</td>
<td align="center" valign="middle">125A/225A</td>
<td align="center" valign="middle">2+8 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-400M-W</td>
<td align="center" valign="middle">400A</td>
<td align="center" valign="middle">125A/225A</td>
<td align="center" valign="middle">2+10 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-400M-W</td>
<td align="center" valign="middle">400A</td>
<td align="center" valign="middle">125A/225A</td>
<td align="center" valign="middle">4+8 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-10063-4W</td>
<td align="center" valign="middle">125A</td>
<td align="center" valign="middle">63A</td>
<td align="center" valign="middle">4 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-10063-6W</td>
<td align="center" valign="middle">125A</td>
<td align="center" valign="middle">63A</td>
<td align="center" valign="middle">6 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-10063-8W</td>
<td align="center" valign="middle">125A</td>
<td align="center" valign="middle">63A</td>
<td align="center" valign="middle">8 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-10063-10W</td>
<td align="center" valign="middle">125A</td>
<td align="center" valign="middle">63A</td>
<td align="center" valign="middle">10 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-10063-12W</td>
<td align="center" valign="middle">125A</td>
<td align="center" valign="middle">63A</td>
<td align="center" valign="middle">12 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-10063-14W</td>
<td align="center" valign="middle">125A</td>
<td align="center" valign="middle">63A</td>
<td align="center" valign="middle">14 PCS MCCB</td>
</tr>
<tr>
<td align="center" valign="middle">SP-10063-16W</td>
<td align="center" valign="middle">125A</td>
<td align="center" valign="middle">63A</td>
<td align="center" valign="middle">16 PCS MCCB</td>
</tr>
</tbody>
</table>
