10KV Standoff Insulator

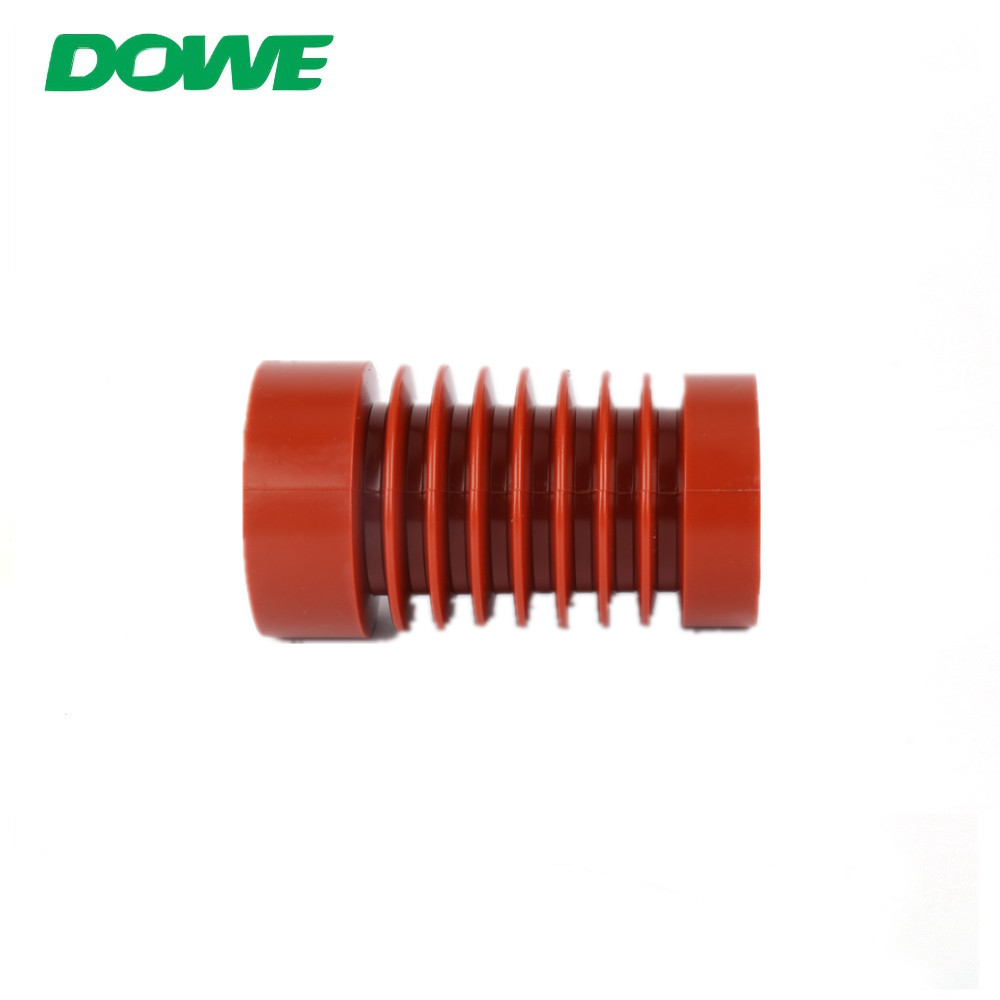

YUEQING DOWE Epoxy Resin high voltage 10KV Busbar Support Insulator

Model:

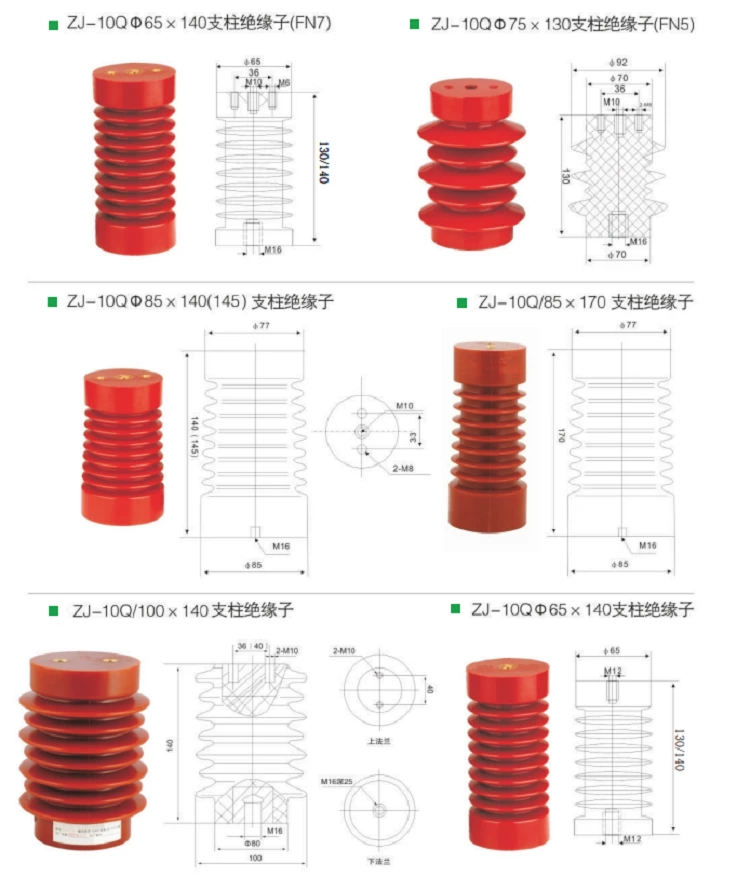

ZJ-10Q 85X140 145 150 170
Voltage:
10kv
Height:
140 145 150 170
Diameter:
85
Screw:
2-m8
Material:
Epoxy resin
MOQ:
2 pcs
Certificate:
CE,RoHS,SGS,REACH
OEM service:
1、Color: support red ,brown or other customsized
2、Insert: support brass,steel or other
3、Model: support OEM model

Contact Now
YUEQING DOWE Epoxy Resin high voltage 10KV Busbar Support Insulator
YUEQING DOWE Epoxy Resin high voltage 10KV Busbar Support Insulator YUEQING DOWE Epoxy Resin high voltage 10KV Busbar Support Insulator YUEQING DOWE Epoxy Resin high voltage 10KV Busbar Support Insulator YUEQING DOWE Epoxy Resin high voltage 10KV Busbar Support Insulator



High voltage standoff insulator description

The variety of high voltage insulator listed in sample all adopt epoxy vacuum pouring technology for one-time molding, kinds of bushing、contact box、insulating cylinder and bell housing etc adopt APG technology for molding. While ,some product adopt SMC、DMC un-saturatuon alkyd enlargement mode plastic for compacting molding. All the product are applied to3.6~40.5KV mid-large volt switchboard.

For some product and specification size owning special requirement ,it could be designed and manufactured according to user demand.



Application

Applicable to all shopping malls, supermarkets, national grids, substations, power energy, urban power and other fields.

Mainly used in switch cabinets, power stations, outdoor high voltage, switchgear,etc.



Our service

Delivery

By express/By sea/By air/By land transportation

Supply

5000pcs/week

Sample

The seller provides 2 samples for free, and the buyer pays the freight

Packing

By carton

Feedback
