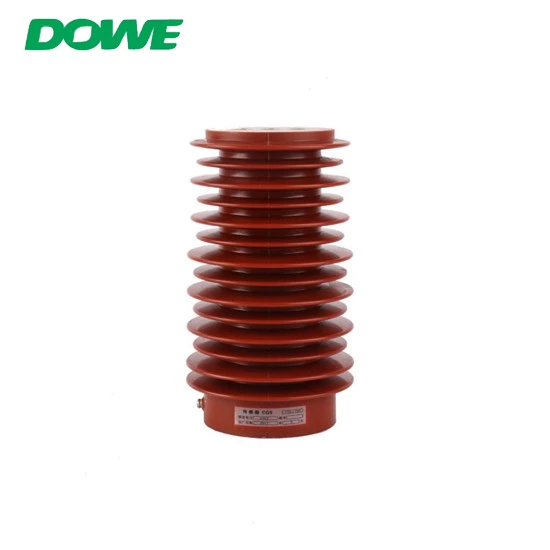

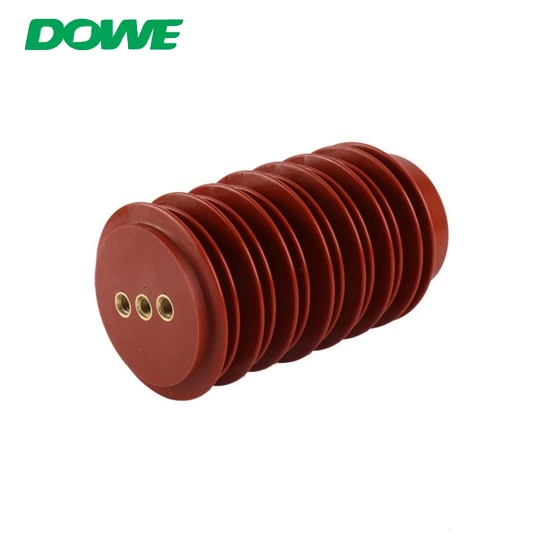

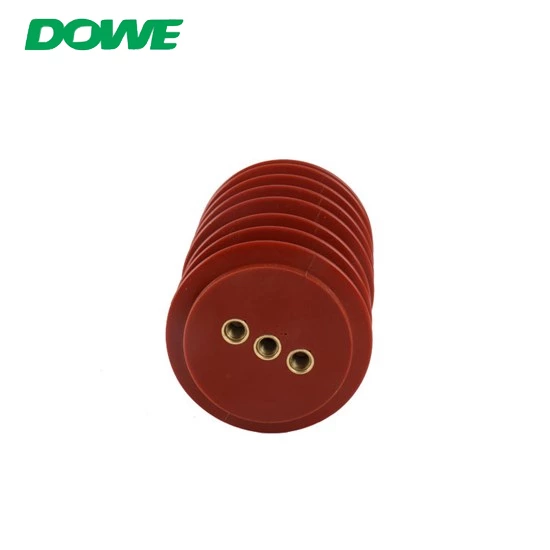

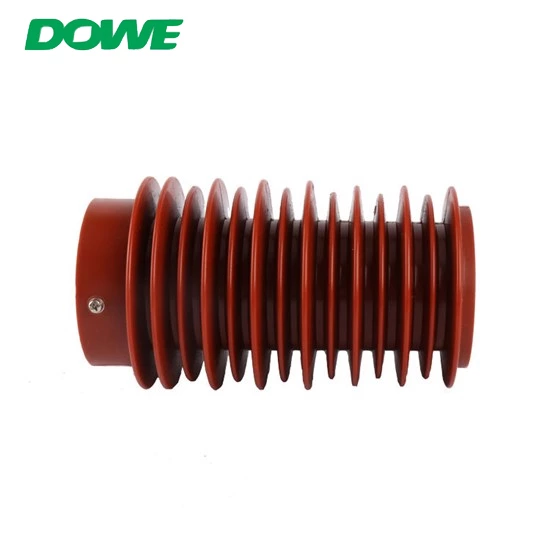

24KV Epoxy Resin Divider

DUWAI 24KV High Voltage Electrical Epoxy Resin Transducer

Model:
CG5-24Q 110X240
Voltage:
24KV
Height:
240
Diameter:
110
Screw:
3-M10
Material:
Epoxy resin
MOQ:
2 pcs
Certificate:
CE,RoHS,SGS,REACH
OEM service:
1、Color: support red ,brown or other customsized
2、Insert: support brass,steel or other
3、Model: support OEM model

Contact Now
DUWAI 24KV High Voltage Electrical Epoxy Resin Transducer
DUWAI 24KV High Voltage Electrical Epoxy Resin Transducer DUWAI 24KV High Voltage Electrical Epoxy Resin Transducer DUWAI 24KV High Voltage Electrical Epoxy Resin Transducer DUWAI 24KV High Voltage Electrical Epoxy Resin Transducer DUWAI 24KV High Voltage Electrical Epoxy Resin Transducer



High voltage sensor insulator description

The high-voltage sensor extracts a certain voltage from the high-voltage charged circuit by pumping the capacitor core rod as the power supply for display and blocking, which is used to reflect the charged state of the device setting, and can forcibly lock and switch the net door. The work of voltage indication and forced locking are controlled by the same high voltage signal, but the circuit system is independent of each other. As long as the high voltage circuit is charged, even if the display circuit and the locking circuit fail at the same time, the electromagnetic lock is still in the locked state. Therefore, the product has high reliability and high safety.

The sensor is epoxy resin cast pillar type insulator type product. It can be used as isolating switch, grounding switch and other post insulators. It has the characteristics of high strength, strong arc resistance, and small partial discharge.



Application

The insulation sensor mainly suitable for power, energy, industry, infrastructure and other industries



Our service

Delivery

By express/By sea/By air/By land transportation

Supply

5000pcs/week

Sample

The seller provides 2 samples for free, and the buyer pays the freight

Packing

By carton



Feedback
