YUEQING DOWE Low Voltage Electrical C25 M6 Conical Busbar Insulator For 1500V

OEM service: 1、Color: support red ,brown or other customsized 2、Insert: support brass,steel or other 3、Model: support OEM model
Model:
C40
Voltage:
660V-4500V
Height:
40
Diameter:
40
Screw:
m6/m8
Material:
BMC/DMC
MOQ:
2 pcs
Certificate:
CE,REACH,ELV,SGS
YUEQING DOWE Low Voltage Electrical C25 M6 Conical Busbar Insulator For 1500V
YUEQING DOWE Low Voltage Electrical C25 M6 Conical Busbar Insulator For 1500V YUEQING DOWE Low Voltage Electrical C25 M6 Conical Busbar Insulator For 1500V

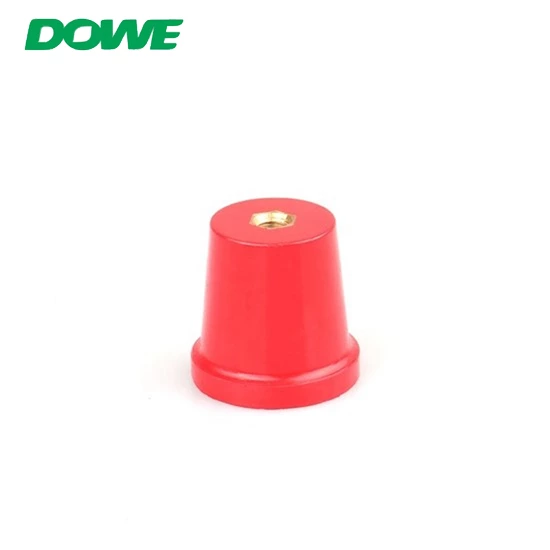

Conical Busbar Insulator

Conical busbar insulator is made of DMC,used for low voltage application(660V-4500V),such as distribution box,switchgear,inverter and green power and so on.

CE,SGS,ROHS certificate for Conical insulator.



Material / Materiale:

-Thread Insert / Inserto Filettato :

Steel With Zn Coating

Brass

-DMC (Doug Moulding Compound)

-SMC (Sheet Moulding Compound)

Colour / Colore :Red

Working Temperature / Temperatura d’esercizio : 40℃~140

Flammability / Autoestinguenza:V0

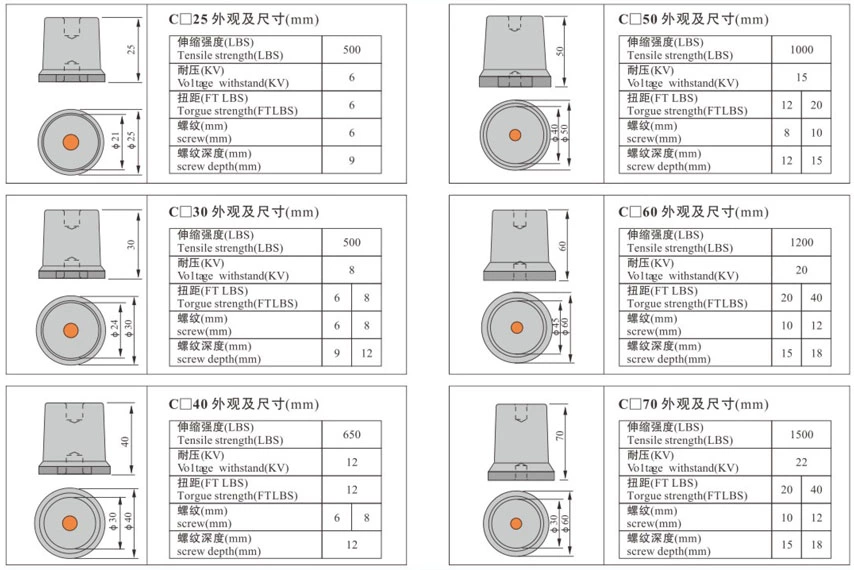

All dimensions are in mm /Tutte le quote sono in mm



Please confirm screw when order busbar insulator.Accepting OEM.



Application:

Low voltage busbar insulator are mainly used in low voltage power distribution cabinets, frequency converters, switchgear and other products.
By connecting the busbar support copper, it plays a role of fixing, supporting and insulating.
Busbar support insulator has excellent insulation performance, high strength, high temperature resistance, reliable safety performance, and is a good choice for fixed busbar of low-voltage power distribution cabinets.



Our service

Delivery

By express/By sea/By air/By land transportation

Supply

5000pcs/week

Sample

The seller provides 2 samples for free, and the buyer pays the freight

Packing

By carton
