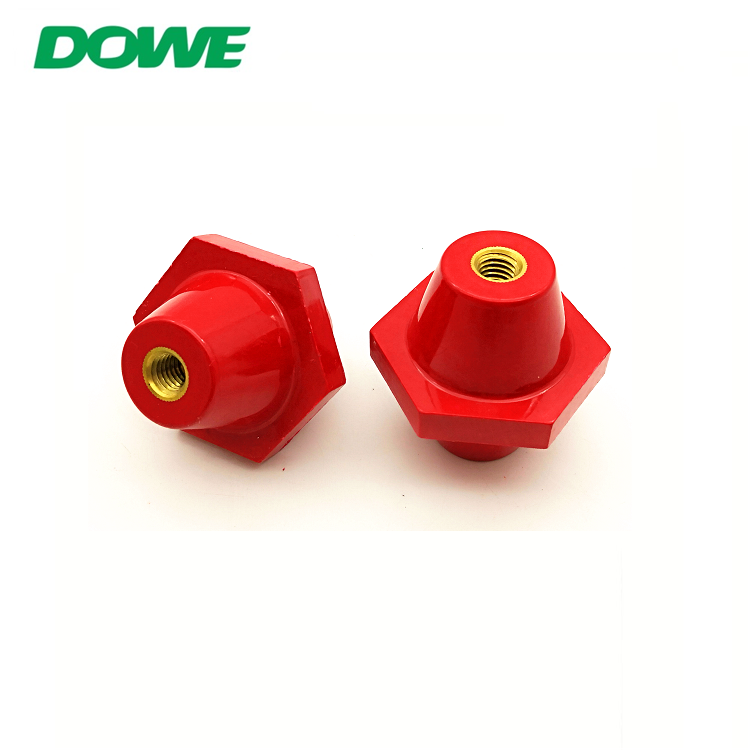

Low Voltage Insulator Busbar Electric Insulation Holder Hexagonal Busbar Insulator From China Factory

Customized Busbar Insulator Customized busbar insulator is made of DMC,used for electrical application,such as distribution box,switchgear,inverter and green power ,rail and so on. Material / Materi
Model:
DOWE6470
Voltage:
660V-4500V
Height:
70mm
Diameter:
64mm
Screw:
3/8-16
Material:
DMC
Torgue strength:
45N/m
MOQ:
1000PCS
Certificate:
CE,REACH,ELV,SGS

Customized Busbar Insulator

Customized busbar insulator is made of DMC,used for electrical application,such as distribution box,switchgear,inverter and green power ,rail and so on.





Material / Materiale:

-Thread Insert / Inserto Filettato :

Steel With Zn Coating

Brass

-DMC (Doug Moulding Compound)

-SMC (Sheet Moulding Compound)

Colour / Colore :Red / Customized

Working Temperature / Temperatura d’esercizio : 40℃~140℃

Flammability / Autoestinguenza:V0

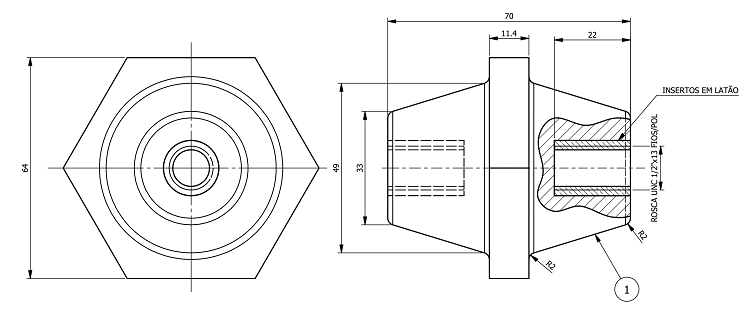

All dimensions are in mm /Tutte le quote sono in mm

Please confirm screw when order busbar insulator.Accepting OEM.

Low Voltage Insulator Busbar Electric Insulation Holder Hexagonal Busbar Insulator From China FactoryLow Voltage Insulator Busbar Electric Insulation Holder Hexagonal Busbar Insulator From China Factory

OEM service:
1、Color: support red ,brown or other customsized
2、Insert: support brass,steel or other
3、Model: support OEM model
