SMC Low Voltage En100 M6 Hexagonal Busbar Support Holder Electrical Insulators Standoff Insulator Electrical Application BMC
- 2 pcs
EN Busbar Insulator
EN busbar insulator is made of DMC,used for low voltage application(660V-4500V),such as distribution box,switchgear,inverter and green power and so on.
CE,SGS,ROHS certificate for drum insulator.
Material / Materiale：
-Thread Insert / Inserto Filettato :
Steel With Zn Coating
-DMC (Doug Moulding Compound)
-SMC (Sheet Moulding Compound)
Colour / Colore :Red
Working Temperature / Temperatura d’esercizio : 40℃～140℃
Flammability / Autoestinguenza:V0

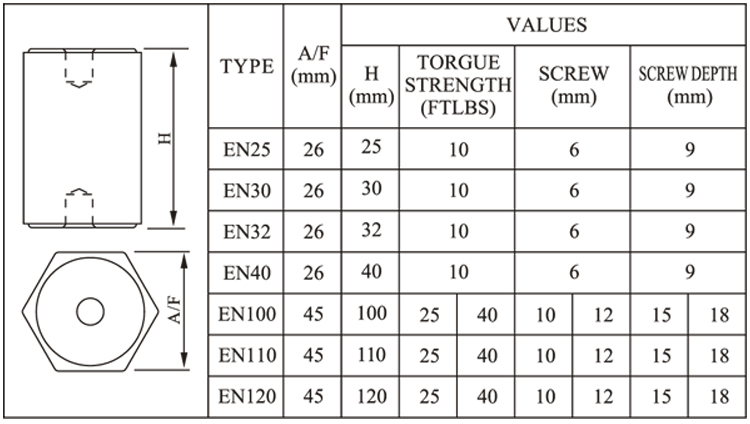

All dimensions are in mm /Tutte le quote sono in mm
Please confirm screw when order busbar insulator.Accepting OEM.
H:25mm-100mm,customized is acceptable.
Low voltage busbar insulator are mainly used in low voltage power distribution cabinets, frequency converters, switchgear and other products.
By connecting the busbar support copper, it plays a role of fixing, supporting and insulating.
Busbar support insulator has excellent insulation performance, high strength, high temperature resistance, reliable safety performance, and is a good choice for fixed busbar of low-voltage power distribution cabinets.
By express/By sea/By air/By land transportation
The seller provides 2 samples for free, and the buyer pays the freight
