DUWAI FOSP - Heat Shrinkable Fiber Optic Splice Protector
APPLICATIONS
The product consists of a reinforced 304 stainless steel rod or a ceramic rod, a hot fusion tube and a cross-linked polyolefin tubing. It can provide good mechanical strength protection at the optical fiber fusion splice and ensures good optical transmission performance.
OPERATING TEMPERATURE RANGE
- Continuous operating temperature: -45℃ ~ 100℃
- Minimum shrink temperature: 70℃
- Full recovery temperature: Above 120˚C
COLOR
Standard color: clear
- Excellent moisture resistance and protection performance
- Transparent sleeve makes the fusion easier before shrinkage
- Can be used conveniently and avoid damage to the optical fiber during installation
<table>
<tbody>
<tr>
<td colspan="2">
<p>Technical Data</p>
</td>
<td>
<p> </p>
</td>
<td>
<p> </p>
</td>
</tr>
<tr>
<td>
<p>Property</p>
</td>
<td>
<p>Specification Requirement</p>
</td>
<td>
<p>Test Method</p>
</td>
<td>
<p>Typical Value</p>
</td>
</tr>
<tr>
<td>
<p>Longitudinal change</p>
</td>
<td>
<p>-5%~5%</p>
</td>
<td>
<p>ASTM D 2671</p>
</td>
<td>
<p>Pass</p>
</td>
</tr>
<tr>
<td>
<p>Tensile strength</p>
</td>
<td>
<p>≥10.3MPa</p>
</td>
<td>
<p>ASTM D 2671</p>
</td>
<td>
<p>≥18MPa</p>
</td>
</tr>
<tr>
<td>
<p>Elongation at break</p>
</td>
<td>
<p>≥200%</p>
</td>
<td>
<p>ASTM D 2671</p>
</td>
<td>
<p>≥300%</p>
</td>
</tr>
<tr>
<td>
<p>Dielectric strength</p>
</td>
<td>
<p>≥19.7kV/mm</p>
</td>
<td>
<p>ASTM D2671</p>
</td>
<td>
<p>25kV/mm</p>
</td>
</tr>
</tbody>
</table>
<table>
<tbody>
<tr>
<td colspan="8">
<p>Specification</p>
</td>
</tr>
<tr>
<td colspan="8">
<p>Standard Sleeves</p>
</td>
</tr>
<tr>
<td rowspan="2">
<p>Part Number</p>
</td>
<td rowspan="2">
<p>O.D. after recovery<br />
(mm)</p>
</td>
<td rowspan="2">
<p>Nominal Sleeve Length<br />
(mm)</p>
</td>
<td colspan="2">
<p>Fusion tube<br />
(D)</p>
</td>
<td colspan="2">
<p>Steel rod<br />
(d)</p>
</td>
<td rowspan="2">
<p>Packing<br />
PCS/bag</p>
</td>
</tr>
<tr>
<td>
<p>I.D.<br />
(mm)</p>
</td>
<td>
<p>Length<br />
(mm)</p>
</td>
<td>
<p>O.D.<br />
(mm)</p>
</td>
<td>
<p>Length<br />
(mm)</p>
</td>
</tr>
<tr>
<td>
<p>FOSP-61</p>
</td>
<td>
<p>3.0±0.1</p>
</td>
<td>
<p>61</p>
</td>
<td>
<p>1.5</p>
</td>
<td>
<p>61</p>
</td>
<td>
<p>1.5</p>
</td>
<td>
<p>56</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>FOSP-45</p>
</td>
<td>
<p>3.0±0.1</p>
</td>
<td>
<p>45</p>
</td>
<td>
<p>1.5</p>
</td>
<td>
<p>45</p>
</td>
<td>
<p>1.5</p>
</td>
<td>
<p>41</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>FOSP-23</p>
</td>
<td>
<p>3.0±0.1</p>
</td>
<td>
<p>23</p>
</td>
<td>
<p>1.5</p>
</td>
<td>
<p>23</p>
</td>
<td>
<p>1.5</p>
</td>
<td>
<p>18</p>
</td>
<td>
<p>100</p>
</td>
</tr>
</tbody>
</table>
<p> </p>
<table>
<tbody>
<tr>
<td colspan="8">
<p>Standard Sleeves</p>
</td>
</tr>
<tr>
<td rowspan="2">
<p>Part Number</p>
</td>
<td rowspan="2">
<p>O.D. after recovery<br />
(mm)</p>
</td>
<td rowspan="2">
<p>Nominal Sleeve Length<br />
(mm)</p>
</td>
<td colspan="2">
<p>Fusion tube<br />
(D)</p>
</td>
<td colspan="2">
<p>Steel rod<br />
(d)</p>
</td>
<td rowspan="2">
<p>Packing<br />
PCS/bag</p>
</td>
</tr>
<tr>
<td>
<p>I.D.<br />
(mm)</p>
</td>
<td>
<p>Length<br />
(mm)</p>
</td>
<td>
<p>O.D.<br />
(mm)</p>
</td>
<td>
<p>Length<br />
(mm)</p>
</td>
</tr>
<tr>
<td>
<p>FOSP-61M</p>
</td>
<td>
<p>2.6±0.1</p>
</td>
<td>
<p>61</p>
</td>
<td>
<p>1.3</p>
</td>
<td>
<p>61</p>
</td>
<td>
<p>1.2</p>
</td>
<td>
<p>56</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>FOSP-45M</p>
</td>
<td>
<p>2.6±0.1</p>
</td>
<td>
<p>45</p>
</td>
<td>
<p>1.3</p>
</td>
<td>
<p>45</p>
</td>
<td>
<p>1.2</p>
</td>
<td>
<p>41</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>FOSP-40M</p>
</td>
<td>
<p>2.6±0.1</p>
</td>
<td>
<p>40</p>
</td>
<td>
<p>1.3</p>
</td>
<td>
<p>40</p>
</td>
<td>
<p>1.2</p>
</td>
<td>
<p>36</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>FOSP-30M</p>
</td>
<td>
<p>2.6±0.1</p>
</td>
<td>
<p>30</p>
</td>
<td>
<p>1.3</p>
</td>
<td>
<p>30</p>
</td>
<td>
<p>1.2</p>
</td>
<td>
<p>26</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>FOSP-25M</p>
</td>
<td>
<p>2.6±0.1</p>
</td>
<td>
<p>25</p>
</td>
<td>
<p>1.3</p>
</td>
<td>
<p>25</p>
</td>
<td>
<p>1.2</p>
</td>
<td>
<p>21</p>
</td>
<td>
<p>100</p>
</td>
</tr>
</tbody>
</table>
<p> </p>
<table>
<tbody>
<tr>
<td colspan="8">
<p>Mini Sleeves</p>
</td>
</tr>
<tr>
<td rowspan="2">
<p>Part Number</p>
</td>
<td rowspan="2">
<p>O.D. after recovery<br />
(mm)</p>
</td>
<td rowspan="2">
<p>Nominal Sleeve Length<br />
(mm)</p>
</td>
<td colspan="2">
<p>Fusion tube<br />
(D)</p>
</td>
<td colspan="2">
<p>Steel rod<br />
(d)</p>
</td>
<td rowspan="2">
<p>Packing<br />
PCS/bag</p>
</td>
</tr>
<tr>
<td>
<p>I.D.<br />
(mm)</p>
</td>
<td>
<p>Length<br />
(mm)</p>
</td>
<td>
<p>O.D.<br />
(mm)</p>
</td>
<td>
<p>Length<br />
(mm)</p>
</td>
</tr>
<tr>
<td>
<p>FOSP-40T-S</p>
</td>
<td>
<p>1.5±0.1</p>
</td>
<td>
<p>40</p>
</td>
<td>
<p>0.5</p>
</td>
<td>
<p>40</p>
</td>
<td>
<p>0.7</p>
</td>
<td>
<p>39.5</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>FOSP-60T</p>
</td>
<td>
<p>2.0±0.1</p>
</td>
<td>
<p>60</p>
</td>
<td>
<p>0.5</p>
</td>
<td>
<p>60</p>
</td>
<td>
<p>1.0</p>
</td>
<td>
<p>56</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>FOSP-40T</p>
</td>
<td>
<p>2.0±0.1</p>
</td>
<td>
<p>40</p>
</td>
<td>
<p>0.5</p>
</td>
<td>
<p>40</p>
</td>
<td>
<p>1.0</p>
</td>
<td>
<p>36</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>FOSP-60A</p>
</td>
<td>
<p>2.4±0.1</p>
</td>
<td>
<p>60</p>
</td>
<td>
<p>1.4</p>
</td>
<td>
<p>60</p>
</td>
<td>
<p>1.0</p>
</td>
<td>
<p>56</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>FOSP-40A</p>
</td>
<td>
<p>2.4±0.1</p>
</td>
<td>
<p>40</p>
</td>
<td>
<p>1.4</p>
</td>
<td>
<p>40</p>
</td>
<td>
<p>1.0</p>
</td>
<td>
<p>36</p>
</td>
<td>
<p>100</p>
</td>
</tr>
</tbody>
</table>
<p> </p>
<table>
<tbody>
<tr>
<td colspan="8">
<p>Micro Sleeve</p>
</td>
</tr>
<tr>
<td rowspan="2">
<p>Part Number</p>
</td>
<td rowspan="2">
<p>O.D. after recovery<br />
(mm)</p>
</td>
<td rowspan="2">
<p>Nominal Sleeve Length<br />
(mm)</p>
</td>
<td colspan="2">
<p>Fusion tube<br />
(D)</p>
</td>
<td colspan="2">
<p>Steel rod<br />
(d)</p>
</td>
<td rowspan="2">
<p>Packing<br />
PCS/bag</p>
</td>
</tr>
<tr>
<td>
<p>I.D.<br />
(mm)</p>
</td>
<td>
<p>Length<br />
(mm)</p>
</td>
<td>
<p>O.D.<br />
(mm)</p>
</td>
<td>
<p>Length<br />
(mm)</p>
</td>
</tr>
<tr>
<td>
<p>FOSP-40S</p>
</td>
<td>
<p>1.4±0.1</p>
</td>
<td>
<p>40</p>
</td>
<td>
<p>0.5</p>
</td>
<td>
<p>40</p>
</td>
<td>
<p>0.5</p>
</td>
<td>
<p>39.5</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>FOSP-25S</p>
</td>
<td>
<p>1.4±0.1</p>
</td>
<td>
<p>25</p>
</td>
<td>
<p>0.5</p>
</td>
<td>
<p>25</p>
</td>
<td>
<p>0.5</p>
</td>
<td>
<p>24.5</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>FOSP-18S</p>
</td>
<td>
<p>1.4±0.1</p>
</td>
<td>
<p>18</p>
</td>
<td>
<p>0.5</p>
</td>
<td>
<p>18</p>
</td>
<td>
<p>0.5</p>
</td>
<td>
<p>17</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>FOSP-15S</p>
</td>
<td>
<p>1.4±0.1</p>
</td>
<td>
<p>15</p>
</td>
<td>
<p>0.5</p>
</td>
<td>
<p>15</p>
</td>
<td>
<p>0.5</p>
</td>
<td>
<p>15</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>FOSP-10S</p>
</td>
<td>
<p>1.4±0.1</p>
</td>
<td>
<p>10</p>
</td>
<td>
<p>0.5</p>
</td>
<td>
<p>10</p>
</td>
<td>
<p>0.5</p>
</td>
<td>
<p>10</p>
</td>
<td>
<p>100</p>
</td>
</tr>
</tbody>
</table>
<p><br />
<img alt="" src="/uploads/2312/fosp-02.jpg" /></p>
<ol>

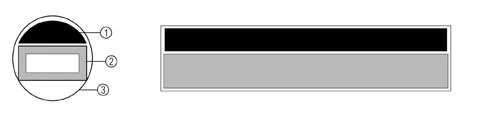

<li>Fusion tube</li>
<li>Steel rod</li>
<li>Heat shrinkable tubing</li>
</ol>
<table>
<tbody>
<tr>
<td rowspan="2">
<p>Part Number</p>
</td>
<td rowspan="2">
<p>Nominal Sleeve Length<br />
(mm)</p>
</td>
<td rowspan="2">
<p>fusion tubeHeight*width<br />
(mm)</p>
</td>
<td colspan="3">
<p>Ceramic rods</p>
</td>
</tr>
<tr>
<td>
<p>length<br />
(mm)</p>
</td>
<td>
<p>Width<br />
(mm)</p>
</td>
<td>
<p>Height<br />
(mm)</p>
</td>
</tr>
<tr>
<td>
<p>FOSP-4RD<br />
Single ceramic</p>
</td>
<td>
<p>41.5±0.5</p>
</td>
<td>
<p>1.3*2.0</p>
</td>
<td>
<p>40±0.5</p>
</td>
<td>
<p>3.0±0.1</p>
</td>
<td>
<p>1.5±0.1</p>
</td>
</tr>
<tr>
<td>
<p>FOSP-4RS<br />
Dual ceramic</p>
</td>
<td>
<p>41.5±0.5</p>
</td>
<td>
<p>1.0*2.2</p>
</td>
<td>
<p>40±0.5</p>
</td>
<td>
<p>3.0±0.1</p>
</td>
<td>
<p>1.5±0.1</p>
</td>
</tr>
<tr>
<td>
<p>FOSP-6RD<br />
Single ceramic</p>
</td>
<td>
<p>41.5±0.5</p>
</td>
<td>
<p>1.4*2.7</p>
</td>
<td>
<p>40±0.5</p>
</td>
<td>
<p>3.0±0.1</p>
</td>
<td>
<p>1.5±0.1</p>
</td>
</tr>
<tr>
<td>
<p>FOSP-6RS<br />
Dual ceramic</p>
</td>
<td>
<p>41.5±0.5</p>
</td>
<td>
<p>1.2*2.8</p>
</td>
<td>
<p>40±0.5</p>
</td>
<td>
<p>3.0±0.1</p>
</td>
<td>
<p>1.5±0.1</p>
</td>
</tr>
<tr>
<td>
<p>FOSP-8RD<br />
Single ceramic</p>
</td>
<td>
<p>41.5±0.5</p>
</td>
<td>
<p>2.0*3.6</p>
</td>
<td>
<p>40±0.5</p>
</td>
<td>
<p>4.0±0.1</p>
</td>
<td>
<p>2.0±0.1</p>
</td>
</tr>
<tr>
<td>
<p>FOSP-8RS<br />
Dual ceramic</p>
</td>
<td>
<p>41.5±0.5</p>
</td>
<td>
<p>1.7*3.6</p>
</td>
<td>
<p>40±0.5</p>
</td>
<td>
<p>4.0±0.1</p>
</td>
<td>
<p>2.0±0.1</p>
</td>
</tr>
<tr>
<td>
<p>FOSP-12RD<br />
Single ceramic</p>
</td>
<td>
<p>41.5±0.5</p>
</td>
<td>
<p>2.5*3.8</p>
</td>
<td>
<p>40±0.5</p>
</td>
<td>
<p>4.0±0.1</p>
</td>
<td>
<p>2.0±0.1</p>
</td>
</tr>
<tr>
<td>
<p>FOSP-12RS<br />
Dual ceramic</p>
</td>
<td>
<p>41.5±0.5</p>
</td>
<td>
<p>1.8*3.8</p>
</td>
<td>
<p>40±0.5</p>
</td>
<td>
<p>4.0±0.1</p>
</td>
<td>
<p>2.0±0.1</p>
</td>
</tr>
</tbody>
</table>
<p> <img alt="" src="/uploads/2312/fosp-1.jpg" /></p>
<p>Ceramic heat shrinkable fiber optic splice protector</p>
<ol>
<li>Ceramic rod</li>
<li>Fusion tube</li>
<li>Heat shrinkable tubing</li>
</ol>
