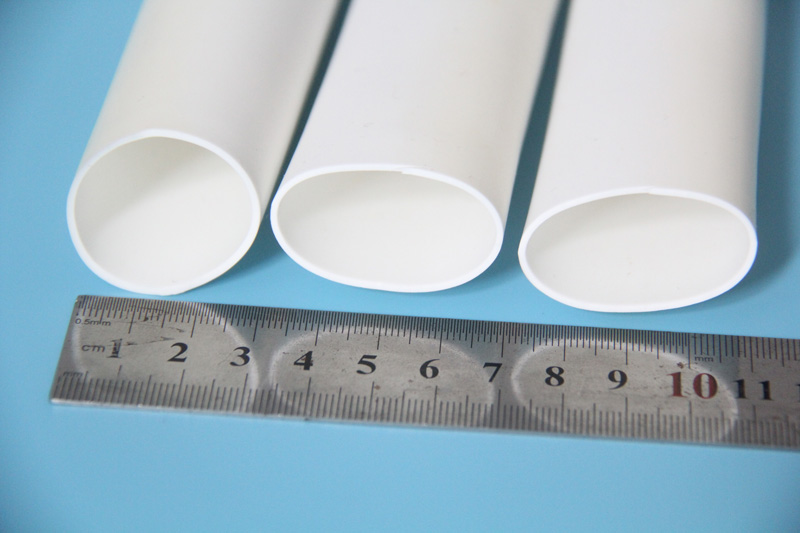

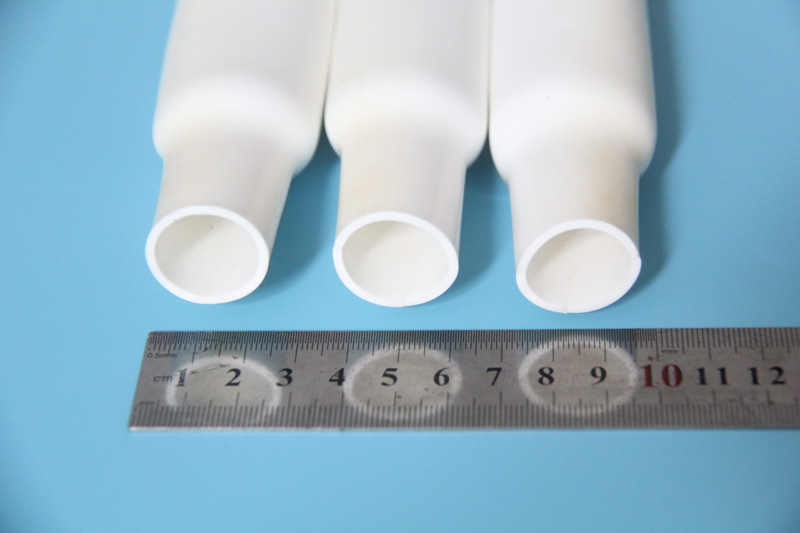

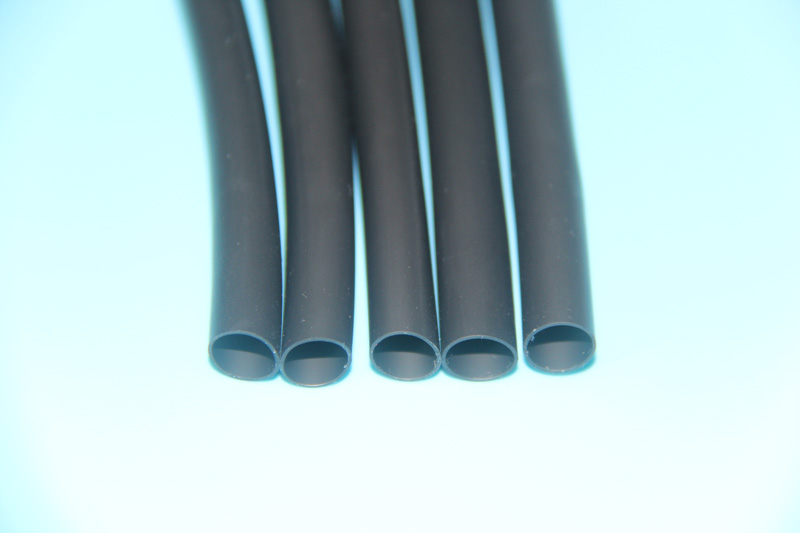

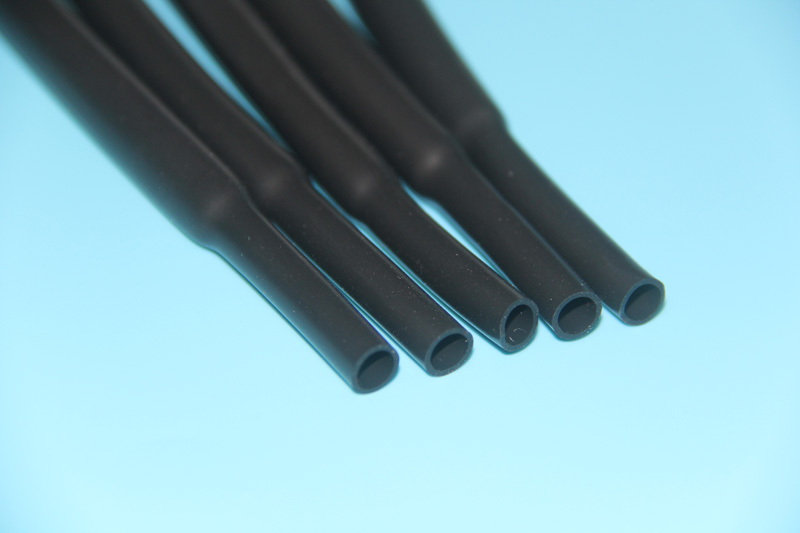

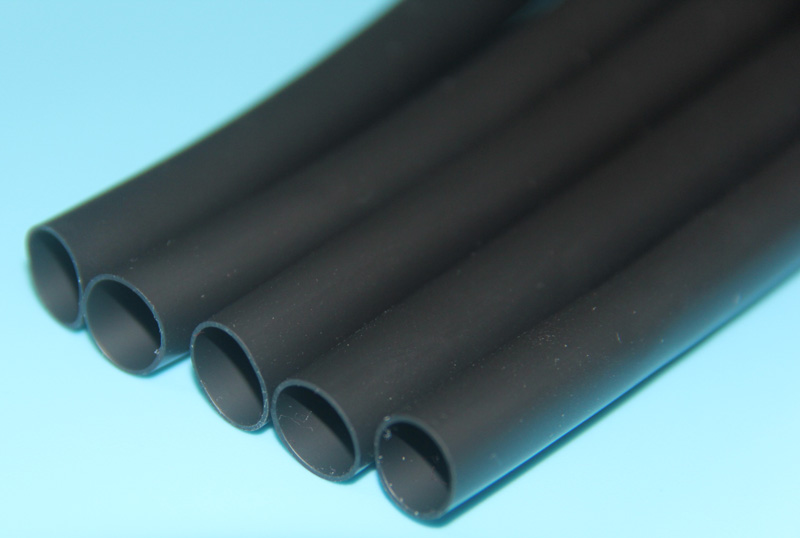

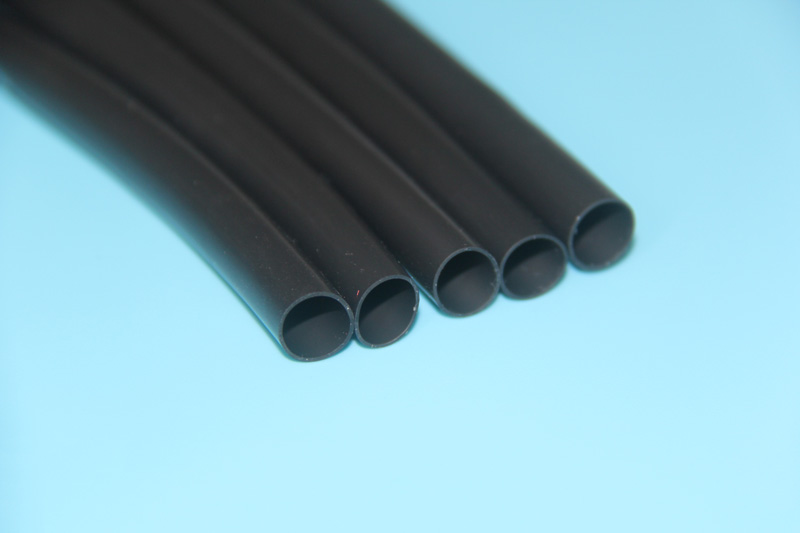

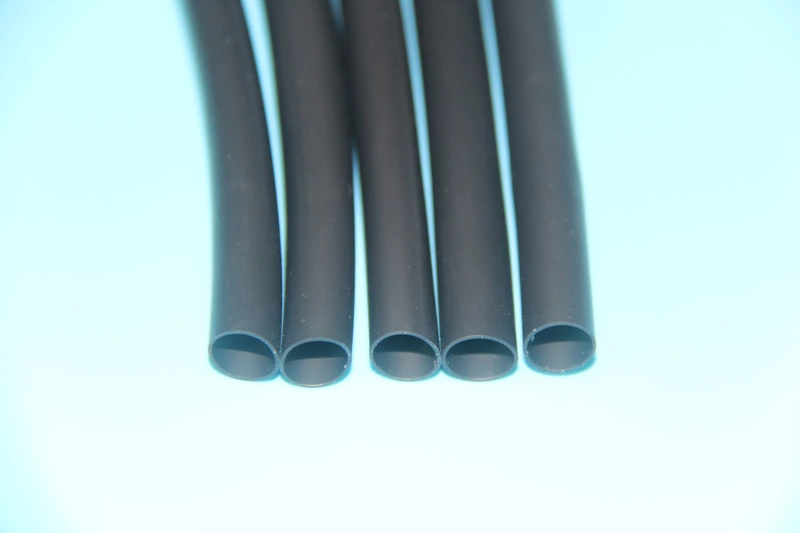

High temperature resistant silicone heat shrink tube
Silicone heat shrinkable tubing is a high-quality, general-purpose heat shrinkable tubing manufactured through a special formula process. It also has high temperature resistance, low temperature resistance, chemical corrosion resistance, high insulation, high flame retardancy, high shrinkage, environmental protection, and softness. and weather resistance, and can be used to organize wiring harnesses and provide insulation protection.
- Operating Temperature:
- -55℃-200℃
- Minimum Shrinkage Temperature:
- 150℃
- Shrink Ratio:
- 1.7:1
- Standard Color:
- Gray, black, iron red, other colors can be customized
- Environmental Protection Standards:
- RoHS
- Features
- Compatible with steam (limit cycle), gamma, RTO, dry heat sterilization
Silicone heat shrinkable tubing is a high-quality, general-purpose heat shrinkable tubing manufactured through a special formula process. It also has high temperature resistance, low temperature resistance, chemical corrosion resistance, high insulation, high flame retardancy, high shrinkage, environmental protection, and softness. and weather resistance, and can be used to organize wiring harnesses and provide insulation protection. Product performance: A new type of heat shrinkable product mainly used for insulation, protection, coating, etc. of electronic components. After heating, the inner diameter of the casing quickly shrinks to half, tightly wrapping the protected electronic components within the casing without being affected by the external environment. The biggest advantage over ordinary heat shrink tubing is its high temperature resistance, which can be as high as 200 degrees Celsius.
Application fields: Silicone heat shrinkable tubes are often used in medical equipment, household appliances, aerospace, military industry, automobiles, electronic components, transformers, engines and other fields that have certain requirements on product flexibility and temperature resistance to provide insulation protection for wires and cables. . Compared with ordinary casing, it has better high temperature resistance, high pressure resistance and insulation performance.
<table>
<tbody>
<tr>
<td colspan="3">
<p>Silicone heat shrinkable tube performance technical indicators</p>
</td>
</tr>
<tr>
<td>
<p>Test items</p>
</td>
<td>
<p>Flame retardant</p>
</td>
<td>
<p>normal type</p>
</td>
</tr>
<tr>
<td>
<p>Tensile strength MPa(Kg/cm2)</p>
</td>
<td>
<p>6.9(70)</p>
</td>
<td>
<p>6.9(70)</p>
</td>
</tr>
<tr>
<td>
<p>Elongation at break％</p>
</td>
<td>
<p>300</p>
</td>
<td>
<p>300</p>
</td>
</tr>
<tr>
<td>
<p>Tear strength kN/m(kg f/cm)</p>
</td>
<td>
<p>14.5(15)</p>
</td>
<td>
<p>14.5(15)</p>
</td>
</tr>
<tr>
<td>
<p>Volume resistivity Ω·m(Ω·cm)</p>
</td>
<td>
<p>2×1012(2×1014)</p>
</td>
<td>
<p>2×1012(2×1014)</p>
</td>
</tr>
<tr>
<td>
<p>Dielectric strength KV/mm</p>
</td>
<td>
<p>25</p>
</td>
<td>
<p>25</p>
</td>
</tr>
<tr>
<td>
<p>Dielectric constant（ε）50Hz</p>
</td>
<td>
<p>3.2</p>
</td>
<td>
<p>3.2</p>
</td>
</tr>
<tr>
<td>
<p>Dielectric loss tangent 50Hz</p>
</td>
<td>
<p>0.001</p>
</td>
<td>
<p>0.001</p>
</td>
</tr>
<tr>
<td>
<p>Operating temperature range℃</p>
</td>
<td>
<p>-50～+200</p>
</td>
<td>
<p>-50～+200</p>
</td>
</tr>
<tr>
<td>
<p>Axial shrinkage%</p>
</td>
<td>
<p>40%</p>
</td>
<td>
<p>40%</p>
</td>
</tr>
<tr>
<td>
<p>Shrinkage temperature℃</p>
</td>
<td>
<p>More than 90</p>
</td>
<td>
<p>More than 90</p>
</td>
</tr>
</tbody>
</table>
<table>
<tbody>
<tr>
<td colspan="8">
<p>Silicone heat shrinkable tube specification table</p>
</td>
</tr>
<tr>
<td rowspan="2">
<p>Specifications (mm)</p>
</td>
<td colspan="3">
<p>Dimensions before shrinkage (mm)</p>
</td>
<td colspan="3">
<p>Dimensions after complete shrinkage (mm)</p>
</td>
<td rowspan="2">
<p>Packaging Meter/segment</p>
</td>
</tr>
<tr>
<td>
<p>Product inner diameter</p>
</td>
<td>
<p>Thin</p>
</td>
<td>
<p>Thick type</p>
</td>
<td>
<p>Maximum inner diameter</p>
</td>
<td>
<p>Thin</p>
</td>
<td>
<p>Thick type</p>
</td>
</tr>
<tr>
<td>
<p>Φ 0.8</p>
</td>
<td>
<p>≥0.8</p>
</td>
<td>
<p>0.5±0.1</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>0.5±0.1</p>
</td>
<td>
<p>0.7±0.1</p>
</td>
<td>
<p>1.1±0.1</p>
</td>
<td>
<p>200</p>
</td>
</tr>
<tr>
<td>
<p>Φ 1.0/1.2</p>
</td>
<td>
<p>≥1.0</p>
</td>
<td>
<p>0.5±0.1</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>0.6±0.1</p>
</td>
<td>
<p>0.7±0.1</p>
</td>
<td>
<p>1.1±0.1</p>
</td>
<td>
<p>200</p>
</td>
</tr>
<tr>
<td>
<p>Φ1.5/1.7</p>
</td>
<td>
<p>≥1.5</p>
</td>
<td>
<p>0.5±0.1</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>0.7±0.1</p>
</td>
<td>
<p>1.1±0.1</p>
</td>
<td>
<p>200</p>
</td>
</tr>
<tr>
<td>
<p>Φ 2.0/2.3</p>
</td>
<td>
<p>≥2.0</p>
</td>
<td>
<p>0.5±0.1</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>1.2±0.1</p>
</td>
<td>
<p>0.7±0.1</p>
</td>
<td>
<p>1.1±0.1</p>
</td>
<td>
<p>200</p>
</td>
</tr>
<tr>
<td>
<p>Φ 2.5</p>
</td>
<td>
<p>≥2.5</p>
</td>
<td>
<p>0.5±0.1</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>1.5±0.1</p>
</td>
<td>
<p>0.7±0.1</p>
</td>
<td>
<p>1.1±0.1</p>
</td>
<td>
<p>200</p>
</td>
</tr>
<tr>
<td>
<p>Φ3.0/3.2/3.4</p>
</td>
<td>
<p>≥3.0</p>
</td>
<td>
<p>0.5±0.1</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>1.8±0.1</p>
</td>
<td>
<p>0.7±0.1</p>
</td>
<td>
<p>1.1±0.1</p>
</td>
<td>
<p>200</p>
</td>
</tr>
<tr>
<td>
<p>Φ 3.0</p>
</td>
<td>
<p>≥3.0</p>
</td>
<td>
<p>0.5±0.1</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>1.8±0.1</p>
</td>
<td>
<p>0.7±0.1</p>
</td>
<td>
<p>1.1±0.1</p>
</td>
<td>
<p>200</p>
</td>
</tr>
<tr>
<td>
<p>Φ 3.5</p>
</td>
<td>
<p>≥3.5</p>
</td>
<td>
<p>0.5±0.1</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>2.0±0.1</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>1.2±0.1</p>
</td>
<td>
<p>200</p>
</td>
</tr>
<tr>
<td>
<p>Φ4.0</p>
</td>
<td>
<p>≥4.0</p>
</td>
<td>
<p>0.5±0.1</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>2.5±0.1</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>1.2±0.1</p>
</td>
<td>
<p>200</p>
</td>
</tr>
<tr>
<td>
<p>Φ 4.0</p>
</td>
<td>
<p>≥4.0</p>
</td>
<td>
<p>0.5±0.1</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>2.5±0.1</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>1.2±0.1</p>
</td>
<td>
<p>200</p>
</td>
</tr>
<tr>
<td>
<p>Φ 4.5</p>
</td>
<td>
<p>≥4.5</p>
</td>
<td>
<p>0.5±0.1</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>2.8±0.1</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>1.2±0.1</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>Φ 5.0</p>
</td>
<td>
<p>≥5.0</p>
</td>
<td>
<p>0.5±0.1</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>3.0±0.1</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>1.2±0.1</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>Φ 5.5</p>
</td>
<td>
<p>≥5.5</p>
</td>
<td>
<p>0.5±0.1</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>3.4±0.1</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>1.2±0.1</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>Φ 6.0</p>
</td>
<td>
<p>≥6.0</p>
</td>
<td>
<p>0.5±0.1</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>3.8±0.1</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>1.2±0.1</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>Φ 6.5</p>
</td>
<td>
<p>≥6.0</p>
</td>
<td>
<p>0.5±0.1</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>3.8±0.1</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>1.2±0.1</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>Φ 7.0</p>
</td>
<td>
<p>≥7.0</p>
</td>
<td>
<p>0.5±0.1</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>4.0±0.1</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>1.2±0.1</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>Φ8.0</p>
</td>
<td>
<p>≥8.0</p>
</td>
<td>
<p>0.5±0.1</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>4.8±0.1</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>1.2±0.1</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>Φ9.0</p>
</td>
<td>
<p>≥9.0</p>
</td>
<td>
<p>0.5±0.1</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>5.0±0.2</p>
</td>
<td>
<p>0.8±0.1</p>
</td>
<td>
<p>1.2±0.1</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>Φ10</p>
</td>
<td>
<p>≥10.0</p>
</td>
<td>
<p>1.0±0.1</p>
</td>
<td>
<p>1.5±0.2</p>
</td>
<td>
<p>6.5±0.2</p>
</td>
<td>
<p>1.7±0.1</p>
</td>
<td>
<p>2.5±0.2</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>Φ 12</p>
</td>
<td>
<p>≥12.0</p>
</td>
<td>
<p>1.0±0.1</p>
</td>
<td>
<p>1.5±0.2</p>
</td>
<td>
<p>7.0±0.2</p>
</td>
<td>
<p>1.7±0.1</p>
</td>
<td>
<p>2.5±0.2</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>Φ 15</p>
</td>
<td>
<p>≥15.0</p>
</td>
<td>
<p>1.0±0.1</p>
</td>
<td>
<p>1.5±0.2</p>
</td>
<td>
<p>9.0±0.2</p>
</td>
<td>
<p>1.7±0.1</p>
</td>
<td>
<p>2.5±0.2</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>Φ 16</p>
</td>
<td>
<p>≥16.0</p>
</td>
<td>
<p>1.0±0.1</p>
</td>
<td>
<p>1.5±0.2</p>
</td>
<td>
<p>9.0±0.2</p>
</td>
<td>
<p>1.7±0.1</p>
</td>
<td>
<p>2.5±0.2</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>Φ18</p>
</td>
<td>
<p>≥18.0</p>
</td>
<td>
<p>1.0±0.1</p>
</td>
<td>
<p>1.5±0.2</p>
</td>
<td>
<p>9.0±0.2</p>
</td>
<td>
<p>1.7±0.1</p>
</td>
<td>
<p>2.5±0.2</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>Φ20</p>
</td>
<td>
<p>≥20.0</p>
</td>
<td>
<p>1.0±0.1</p>
</td>
<td>
<p>1.5±0.2</p>
</td>
<td>
<p>13.0±0.2</p>
</td>
<td>
<p>1.7±0.1</p>
</td>
<td>
<p>2.5±0.2</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>Φ35</p>
</td>
<td>
<p>≥35</p>
</td>
<td>
<p>1.0±0.2</p>
</td>
<td>
<p>1.5±0.2</p>
</td>
<td>
<p>20±0.5</p>
</td>
<td>
<p>1.7±0.1</p>
</td>
<td>
<p>2.5±0.2</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>Φ40</p>
</td>
<td>
<p>≥38</p>
</td>
<td>
<p>1.0±0.2</p>
</td>
<td>
<p>1.5±0.2</p>
</td>
<td>
<p>25±1</p>
</td>
<td>
<p>1.7±0.1</p>
</td>
<td>
<p>2.5±0.2</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>Φ50</p>
</td>
<td>
<p>≥47</p>
</td>
<td>
<p>1.0±0.2</p>
</td>
<td>
<p>1.5±0.3</p>
</td>
<td>
<p>30±2</p>
</td>
<td>
<p>1.7±0.1</p>
</td>
<td>
<p>2.5±0.2</p>
</td>
<td>
<p>50</p>
</td>
</tr>
<tr>
<td>
<p>Φ60</p>
</td>
<td>
<p>≥57</p>
</td>
<td>
<p>1.5±0.2</p>
</td>
<td>
<p>2.0±0.4</p>
</td>
<td>
<p>38±3</p>
</td>
<td>
<p>2.5±0.3</p>
</td>
<td>
<p>3.3±0.3</p>
</td>
<td>
<p>50</p>
</td>
</tr>
<tr>
<td>
<p>Φ70</p>
</td>
<td>
<p>≥67</p>
</td>
<td>
<p>1.5±0.2</p>
</td>
<td>
<p>2.0±0.4</p>
</td>
<td>
<p>45±3</p>
</td>
<td>
<p>2.5±0.3</p>
</td>
<td>
<p>3.3±0.3</p>
</td>
<td>
<p>50</p>
</td>
</tr>
<tr>
<td>
<p>Φ80</p>
</td>
<td>
<p>≥77</p>
</td>
<td>
<p>1.5±0.3</p>
</td>
<td>
<p>2.0±0.4</p>
</td>
<td>
<p>48±5</p>
</td>
<td>
<p>2.5±0.3</p>
</td>
<td>
<p>3.3±0.3</p>
</td>
<td>
<p>50</p>
</td>
</tr>
<tr>
<td>
<p>Φ90</p>
</td>
<td>
<p>≥87</p>
</td>
<td>
<p>1.5±0.3</p>
</td>
<td>
<p>2.0±0.4</p>
</td>
<td>
<p>52±5</p>
</td>
<td>
<p>2.5±0.3</p>
</td>
<td>
<p>3.3±0.3</p>
</td>
<td>
<p>50</p>
</td>
</tr>
<tr>
<td>
<p>Φ110</p>
</td>
<td>
<p>≥107</p>
</td>
<td>
<p>1.5±0.3</p>
</td>
<td>
<p>2.0±0.44</p>
</td>
<td>
<p>63±5</p>
</td>
<td>
<p>2.5±0.5</p>
</td>
<td>
<p>3.3±0.5</p>
</td>
<td>
<p>50</p>
</td>
</tr>
</tbody>
</table>
