DOWE Low Voltage Electric Busbar Isolator SB30X50 Epoxy Insulators Manufacturers Profession Teminal Standoff Insulators
- Model:
- SB30X50
- Height:
- 50mm
- Diameter:
- 30mm
- Material:
- BMC/DMS/SMC/Epoxy resin
- MOQ:
- 2 pieces
- Certificate:
- CE/SGS/ROHS/REACH

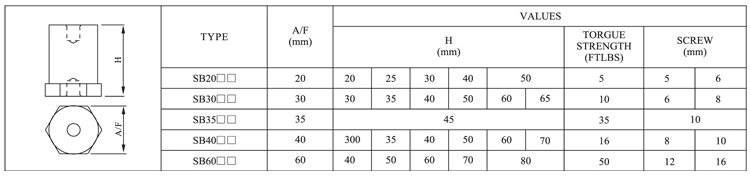

SB Busbar Insulator
SB busbar insulator is hex round，ROHS,UL94 V0,made of DMC,used for low voltage application(660V-4500V),such as distribution box,switchgear,inverter and green power and so on.
CE,SGS,ROHS certificate for drum insulator.
Application：
Low voltage busbar insulator are mainly used in low voltage power distribution cabinets, frequency converters, switchgear and other products.
By connecting the busbar support copper, it plays a role of fixing, supporting and insulating.
Busbar support insulator has excellent insulation performance, high strength, high temperature resistance, reliable safety performance, and is a good choice for fixed busbar of low-voltage power distribution cabinets.
| Density | 1.75-1.95 |
| Water Absorption | ≤ 20 |
| Moulding Shrinkage Ratio | ≤ 0.15 |
| Impact Strength | ≥30 |
| Flexural Strength | ≥90 |
| Insulation Resistance (A) | ≥1.0*1013 |
| Insulation Resistance (D-24/23) | ≥1.0*1012 |
| Dielectric Strength(in 90℃ oil) | ≥12 |
| Dissipation Factor(1MHz) | ≤0.015 |
| Flammability | ≤0.015 |
If you have any questions, please don't hesitate to contact us.
