DOWE MCB Pan Assembly Busbar For Circuit Breaker in Distributionb Board Busbar
1.2mm/3mm thick Tin coated copper busbar 2.Mian switch can be 125A/250A MCB or MCCB 3.Adjusted structure 4.IP 30 for the cover 5.Suitable for 2 or 3 pole distributing 6.From 12 ways to 60 ways
1.2mm/3mm thick Tin coated copper busbar
2.Mian switch can be 125A/250A MCB or MCCB
3.Adjusted structure
4.IP 30 for the cover
5.Suitable for 2 or 3 pole distributing
6.From 12 ways to 60 ways

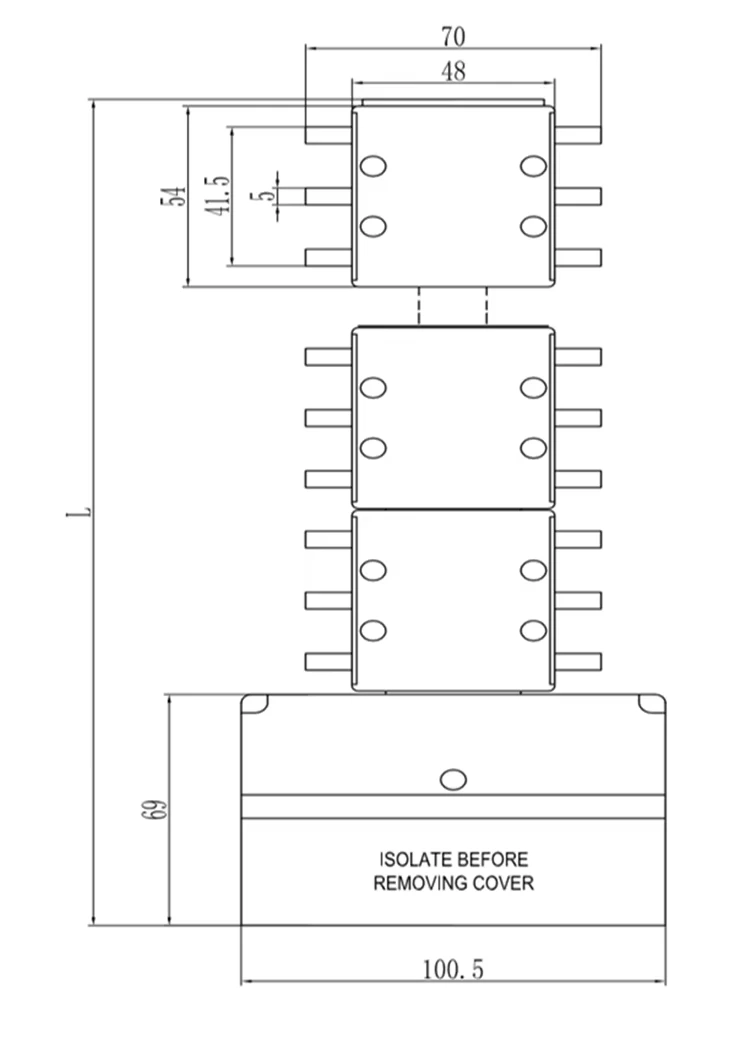

<p style="text-align: center;"><img alt="" src="/uploads/2407/24070802142394990.png" style="width: 750px; height: 1050px;" /></p>

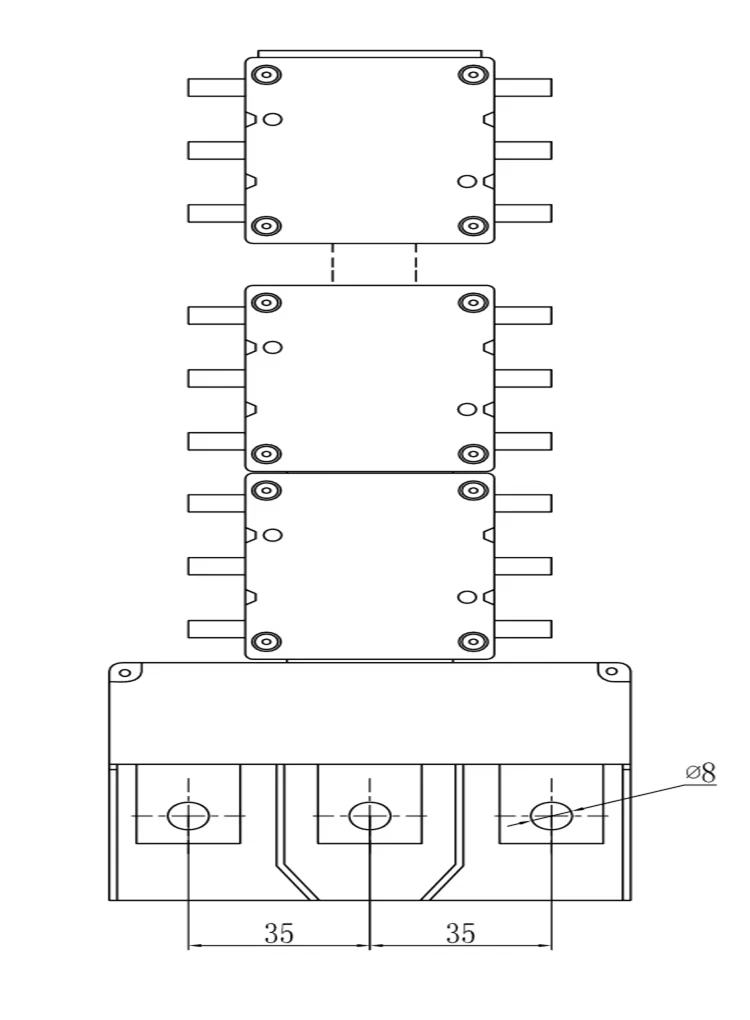

<p style="text-align: center;"><img alt="" src="/uploads/2407/24070802142438728.png" style="width: 750px; height: 1020px;" /></p>

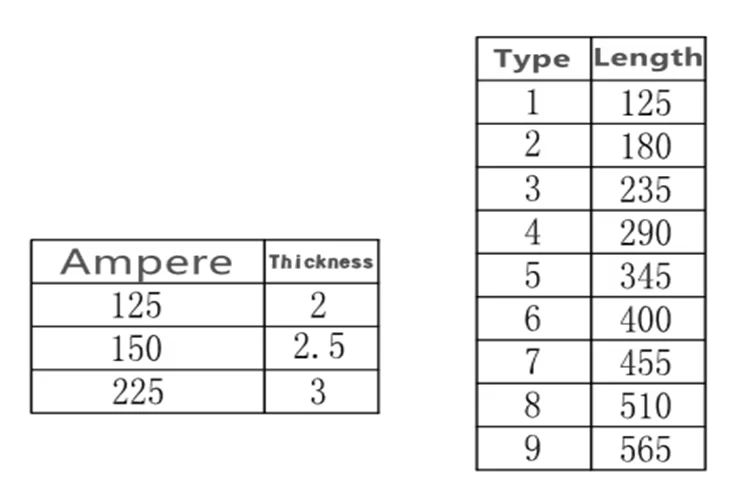

<p style="text-align: center;"><img alt="" src="/uploads/2407/24070802142482412.png" style="width: 750px; height: 500px;" /></p>

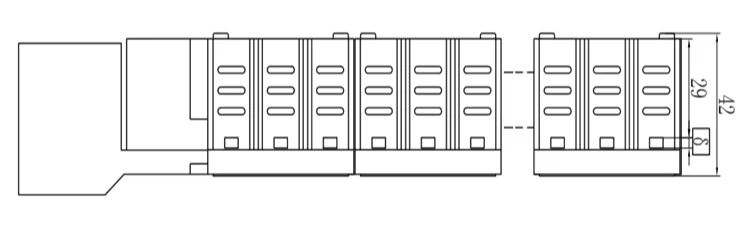

<p style="text-align: center;"><img alt="" src="/uploads/2407/24070802142523122.png" style="width: 750px; height: 229px;" /></p>
<table align="center" style="width: 800px;">
<tbody>
<tr>
<td rowspan="2" style="text-align: center;">Model (ways)</td>
<td style="text-align: center;">Connect Size(mm)</td>
<td style="text-align: center;">Outline Size(mm)</td>
<td style="text-align: center;">Bus bar Size(mm)</td>
</tr>
<tr>
<td style="text-align: center;">Thickness x Width</td>
<td style="text-align: center;">Thickness x Width</td>
<td style="text-align: center;">Length x Width x Height</td>
</tr>
<tr>
<td style="text-align: center;">BP1-125A/12W</td>
<td style="text-align: center;">2×5</td>
<td style="text-align: center;">2×20</td>
<td style="text-align: center;">180x49x46</td>
</tr>
<tr>
<td style="text-align: center;">BP1-125A/18W</td>
<td style="text-align: center;">2×5</td>
<td style="text-align: center;">2×20</td>
<td style="text-align: center;">234x49x46</td>
</tr>
<tr>
<td style="text-align: center;">BP1-125A/24W</td>
<td style="text-align: center;">2×5</td>
<td style="text-align: center;">2×20</td>
<td style="text-align: center;">288x49x46</td>
</tr>
<tr>
<td style="text-align: center;">BP1-125A/30W</td>
<td style="text-align: center;">2×5</td>
<td style="text-align: center;">2×20</td>
<td style="text-align: center;">342x49x46</td>
</tr>
<tr>
<td style="text-align: center;">BP1-125A/36W</td>
<td style="text-align: center;">2×5</td>
<td style="text-align: center;">2×20</td>
<td style="text-align: center;">396x49x46</td>
</tr>
<tr>
<td style="text-align: center;">BP1-125A/42W</td>
<td style="text-align: center;">2×5</td>
<td style="text-align: center;">2×20</td>
<td style="text-align: center;">450x49x46</td>
</tr>
<tr>
<td style="text-align: center;">BP1-125A/48W</td>
<td style="text-align: center;">2×5</td>
<td style="text-align: center;">2×20</td>
<td style="text-align: center;">504x49x46</td>
</tr>
<tr>
<td style="text-align: center;">BP1-125A/54W</td>
<td style="text-align: center;">2×5</td>
<td style="text-align: center;">2×20</td>
<td style="text-align: center;">558x49x46</td>
</tr>
<tr>
<td style="text-align: center;">BP1-125A/60W</td>
<td style="text-align: center;">2×5</td>
<td style="text-align: center;">2×20</td>
<td style="text-align: center;">612x49x46</td>
</tr>
<tr>
<td style="text-align: center;">BP1-225A/12W</td>
<td style="text-align: center;">3×5</td>
<td style="text-align: center;">3×20</td>
<td style="text-align: center;">180x49x46</td>
</tr>
<tr>
<td style="text-align: center;">BP1-225A/18W</td>
<td style="text-align: center;">3×5</td>
<td style="text-align: center;">3×20</td>
<td style="text-align: center;">234x49x46</td>
</tr>
<tr>
<td style="text-align: center;">BP1-225A/24W</td>
<td style="text-align: center;">3×5</td>
<td style="text-align: center;">3×20</td>
<td style="text-align: center;">288x49x46</td>
</tr>
<tr>
<td style="text-align: center;">BP1-225A/30W</td>
<td style="text-align: center;">3×5</td>
<td style="text-align: center;">3×20</td>
<td style="text-align: center;">342x49x46</td>
</tr>
<tr>
<td style="text-align: center;">BP1-225A/36W</td>
<td style="text-align: center;">3×5</td>
<td style="text-align: center;">3×20</td>
<td style="text-align: center;">396x49x46</td>
</tr>
<tr>
<td style="text-align: center;">BP1-225A/42W</td>
<td style="text-align: center;">3×5</td>
<td style="text-align: center;">3×20</td>
<td style="text-align: center;">450x49x46</td>
</tr>
<tr>
<td style="text-align: center;">BP1-225A/48W</td>
<td style="text-align: center;">3×5</td>
<td style="text-align: center;">3×20</td>
<td style="text-align: center;">504x49x46</td>
</tr>
<tr>
<td style="text-align: center;">BP1-225A/54W</td>
<td style="text-align: center;">3×5</td>
<td style="text-align: center;">3×20</td>
<td style="text-align: center;">558x49x46</td>
</tr>
<tr>
<td style="text-align: center;">BP1-225A/60W</td>
<td style="text-align: center;">3×5</td>
<td style="text-align: center;">3×20</td>
<td style="text-align: center;">612x49x46</td>
</tr>
</tbody>
</table>
