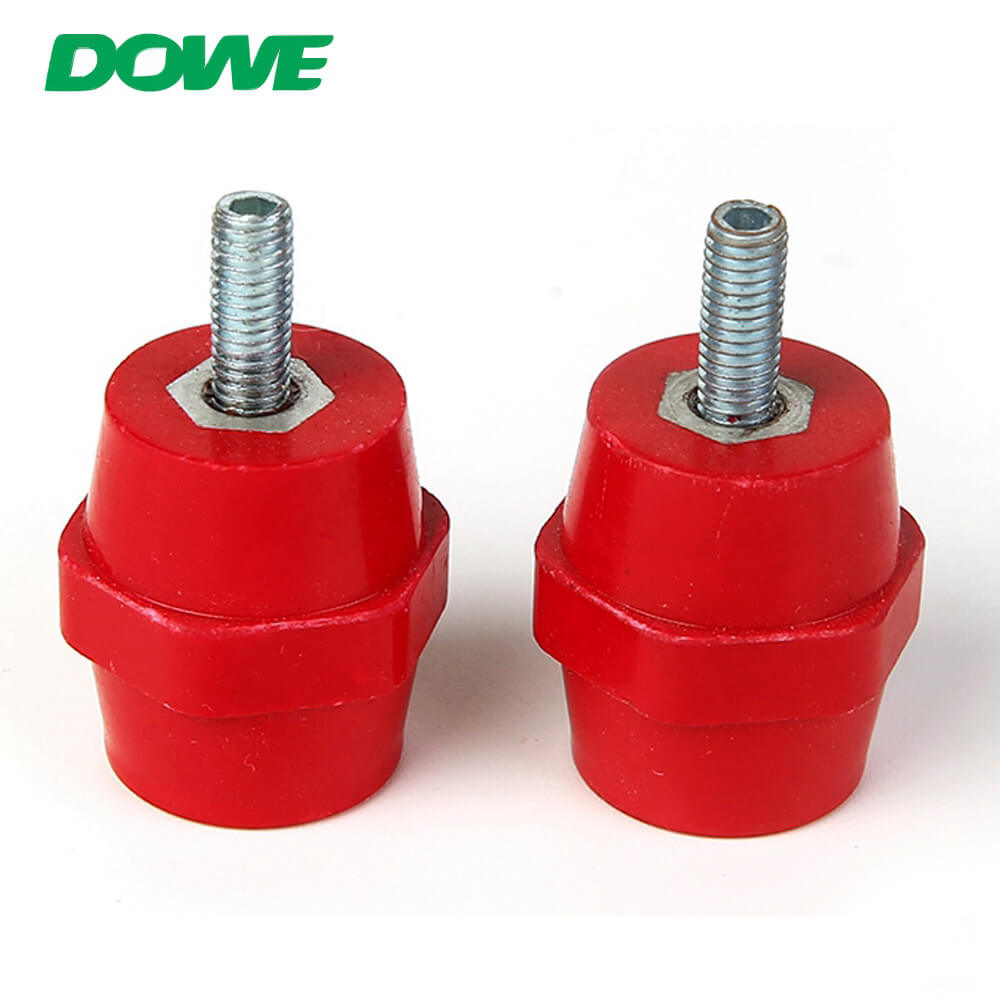

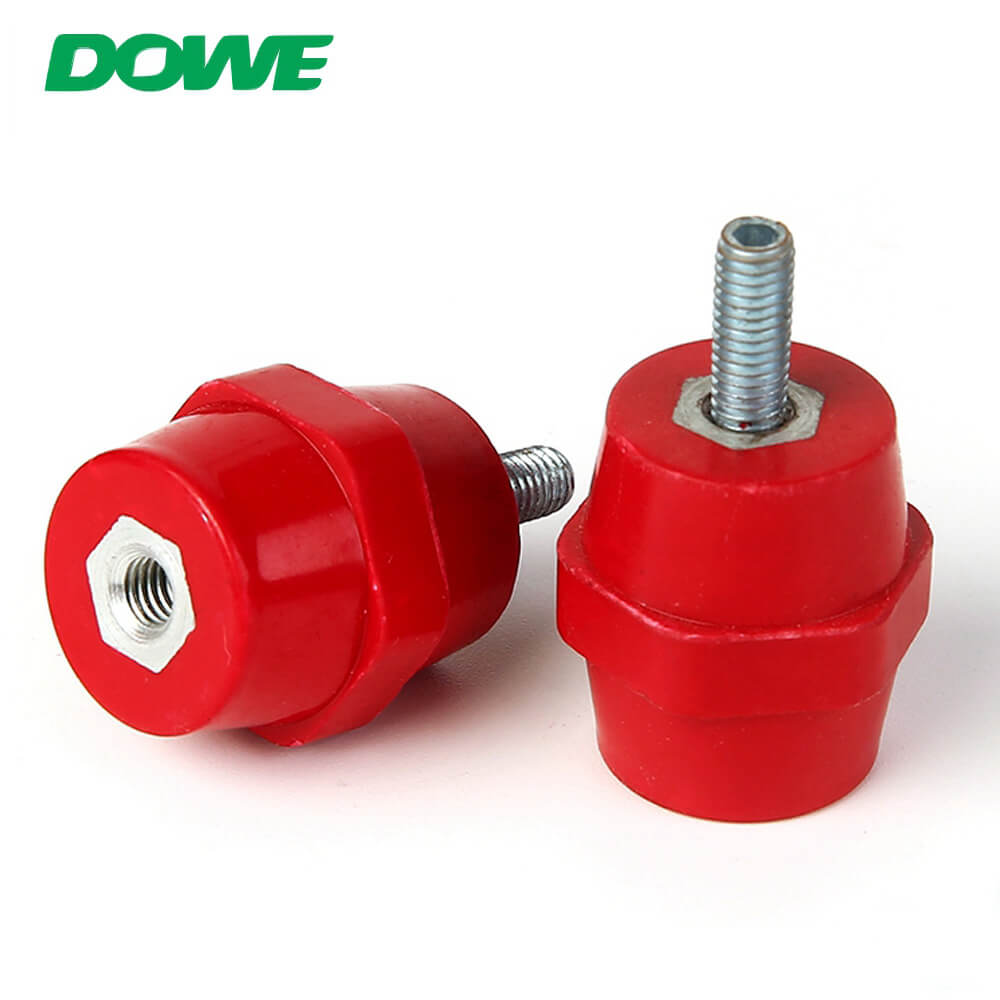

Electric Plastic Insulator male to female SEP2522 DMC Hexagonal Low Voltage Bus Bar Support Insulator With Bolt

OEM service: 1、Color: support red ,brown or other customsized 2、Insert: support brass,steel or other 3、Model: support OEM model

Model:
SEP2522
Voltage:
660V-4500V
Height:
25mm
Diameter:
22mm
Screw:
M4/M5/M6/M8
Material:
BMC/SMC
Torgue strength:
12N
Centil strength:
6800N
MOQ:
2 pcs
Certificate:
CE,REACH,ELV,SGS

Electric Plastic Insulator male to female SEP2522 DMC Hexagonal Low Voltage Bus Bar Support Insulator With Bolt

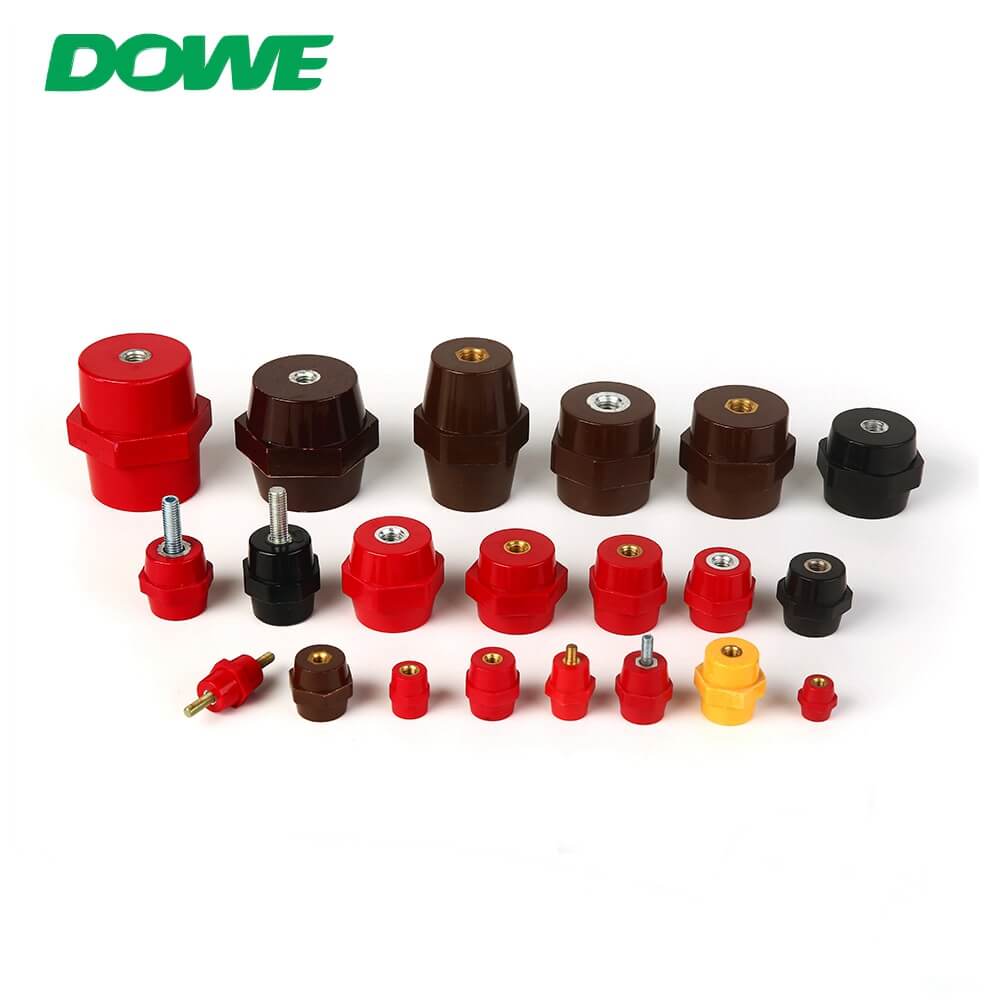

SEP Busbar Insulator

SEP busbar insulator is hexagonal,ROHS,UL94 V0,made of DMC,used for low voltage application(660V-4500V),such as distribution box,switchgear,inverter and green power and so on.
CE,SGS,ROHS certificate for drum insulator.



Material / Materiale:

-Thread Insert / Inserto Filettato :
Steel With Zn Coating
Brass
-DMC (Doug Moulding Compound)
-SMC (Sheet Moulding Compound)
Colour / Colore :Red
Working Temperature / Temperatura d’esercizio : 40℃~140℃
Flammability / Autoestinguenza:V0

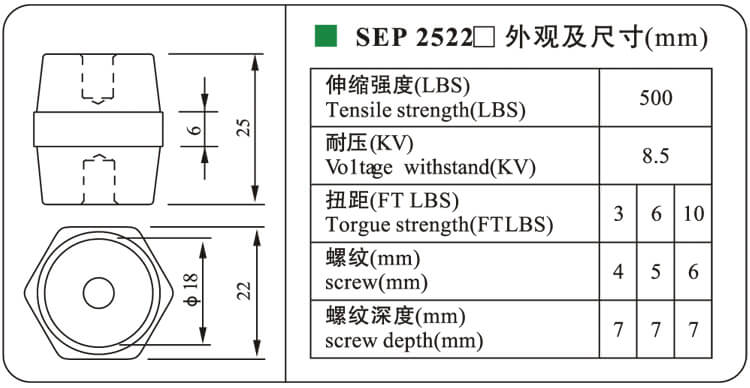

All dimensions are in mm /Tutte le quote sono in mm



Please confirm screw when order busbar insulator.Accepting OEM.



Application:

Low voltage busbar insulator are mainly used in low voltage power distribution cabinets, frequency converters, switchgear and other products.
By connecting the busbar support copper, it plays a role of fixing, supporting and insulating.
Busbar support insulator has excellent insulation performance, high strength, high temperature resistance, reliable safety performance, and is a good choice for fixed busbar of low-voltage power distribution cabinets.



Our service

Delivery By express/By sea/By air/By land transportation
Supply 5000pcs/week
Sample The seller provides 2 samples for free, and the buyer pays the freight
Packing By carton
