Low Voltage SM76 M10 DB76 Busbar Insulator For Cabinet

OEM service: 1、Color: support red ,brown or other customsized 2、Insert: support brass,steel or other 3、Model: support OEM model

Model:
SM76
Voltage:
660V-4500V
Height:
76mm
Diameter:
50mm
Screw:
M10/M12,M8 customized
Material:
BMC/DMC
Torgue strength:
50N
Centil strength:
12000N
MOQ:
2 pcs
Certificate:
CE,REACH,ELV,SGS

Low Voltage SM76 M10 DB76 Busbar Insulator For Cabinet



SM Busbar Insulator

SM busbar insulator is drum,made of DMC,used for low voltage application(660V-4500V),such as distribution box,switchgear,inverter and green power and so on.
CE,SGS,ROHS certificate for drum insulator.



Material / Materiale:

-Thread Insert / Inserto Filettato :
Steel With Zn Coating

Brass Steel Coating Brass
-DMC (Doug Moulding Compound)
-SMC (Sheet Moulding Compound)

Colour / Colore :Red
Working Temperature / Temperatura d’esercizio : 40℃~140℃
Flammability / Autoestinguenza:V0

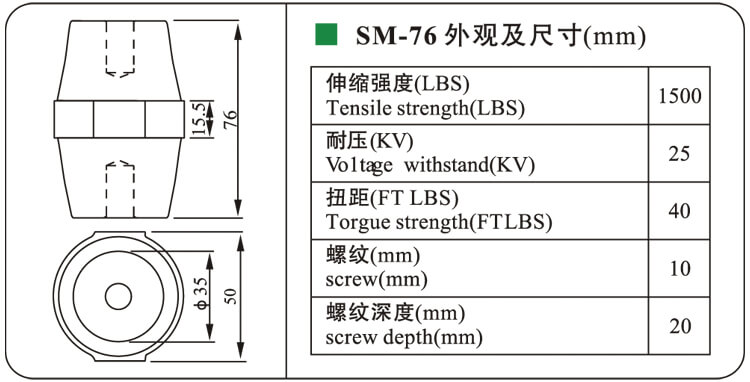

All dimensions are in mm /Tutte le quote sono in mm

Please confirm screw when order busbar insulator.Accepting OEM.



Application:

Low voltage busbar insulator are mainly used in low voltage power distribution cabinets, frequency converters, switchgear and other products.
By connecting the busbar support copper, it plays a role of fixing, supporting and insulating.
Busbar support insulator has excellent insulation performance, high strength, high temperature resistance, reliable safety performance, and is a good choice for fixed busbar of low-voltage power distribution cabinets.



Our service

Delivery By express/By sea/By air/By land transportation
Supply 5000pcs/week
Sample The seller provides 2 samples for free, and the buyer pays the freight
Packing By carton
