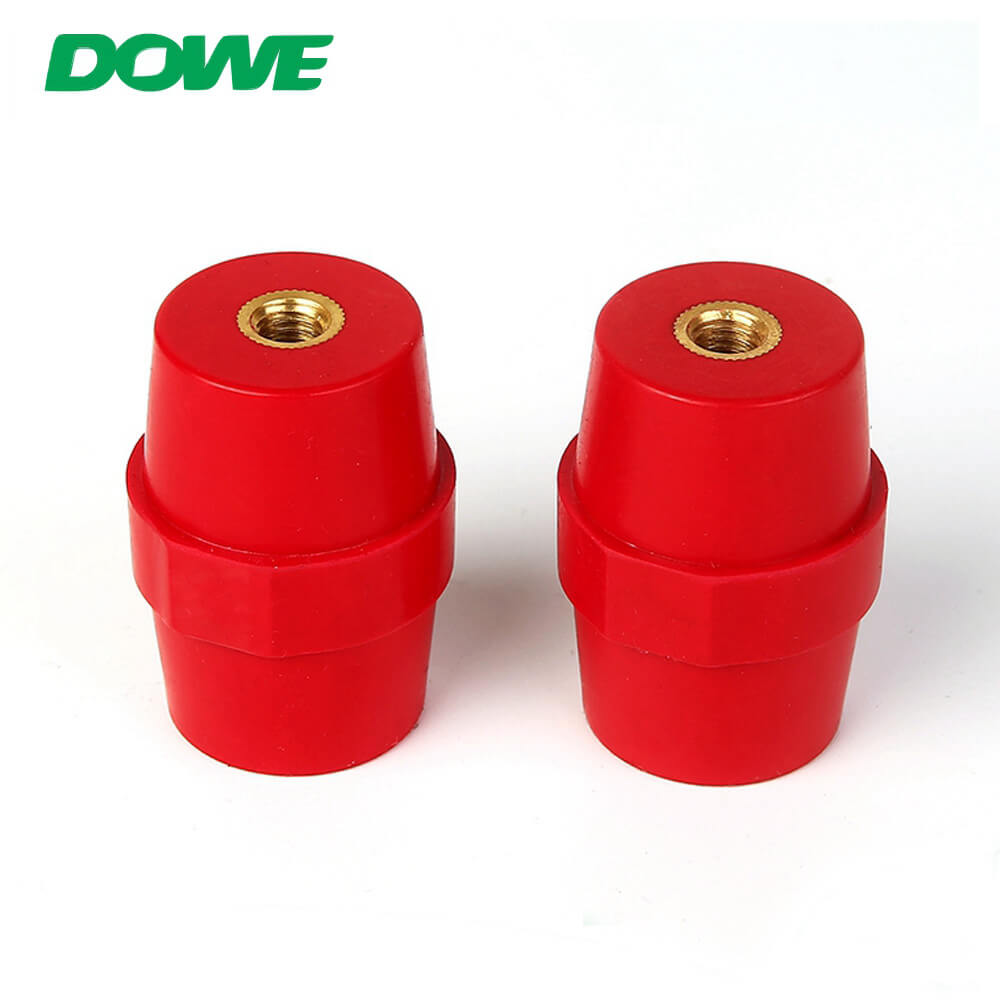

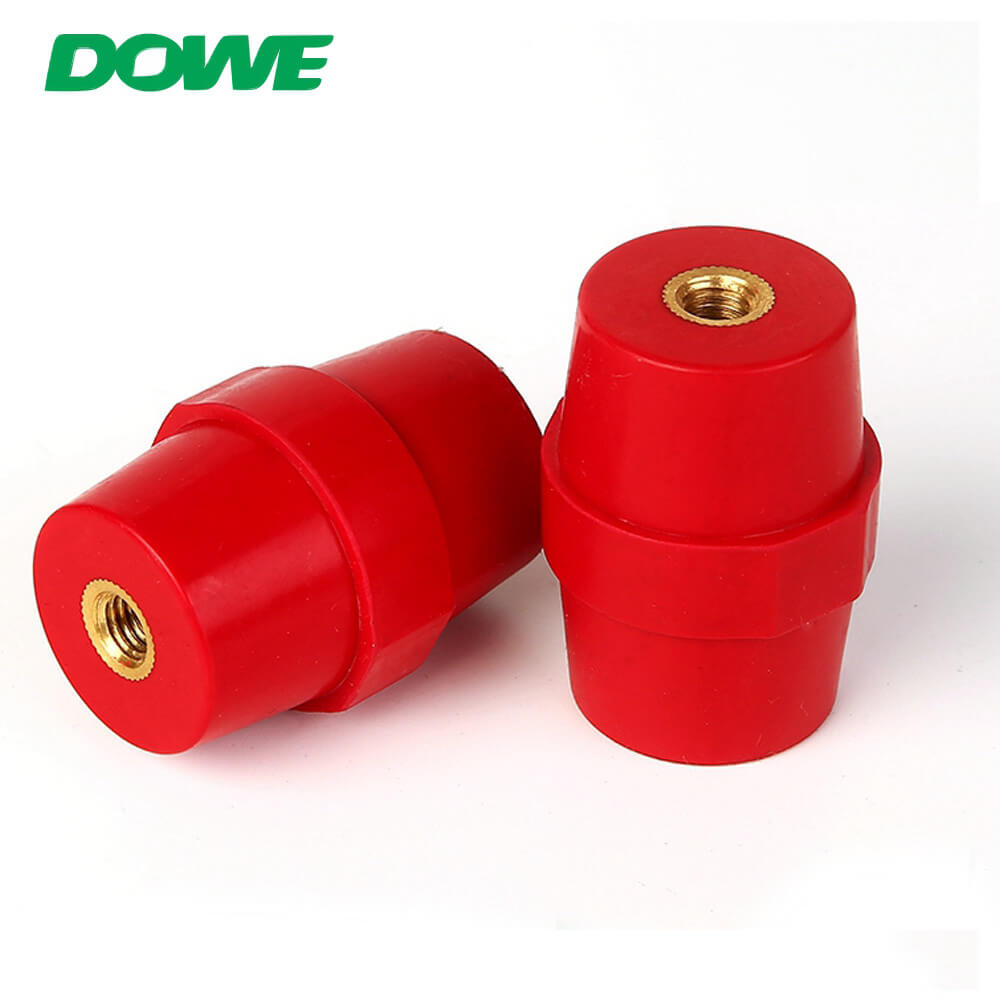

Plastic Insulator Factory SM51 Low Voltage Standoff Insulator for Electric Earthing

OEM service: 1、Color: support red ,brown or other customsized 2、Insert: support brass,steel or other 3、Model: support OEM model
Model:
SM51
Voltage:
660V-4500V
Height:
51mm
Diameter:
36mm
Screw:
M8/M10 ,M6/M12 customized
Material:
DMC/BMC
Torgue strength:
28N
Centil strength:
8650N
MOQ:
2 pcs
Certificate:
CE,REACH,ELV,SGS
Plastic Insulator Factory SM51 Low Voltage Standoff Insulator for Electric Earthing
Plastic Insulator Factory SM51 Low Voltage Standoff Insulator for Electric Earthing Plastic Insulator Factory SM51 Low Voltage Standoff Insulator for Electric Earthing Plastic Insulator Factory SM51 Low Voltage Standoff Insulator for Electric Earthing Plastic Insulator Factory SM51 Low Voltage Standoff Insulator for Electric Earthing

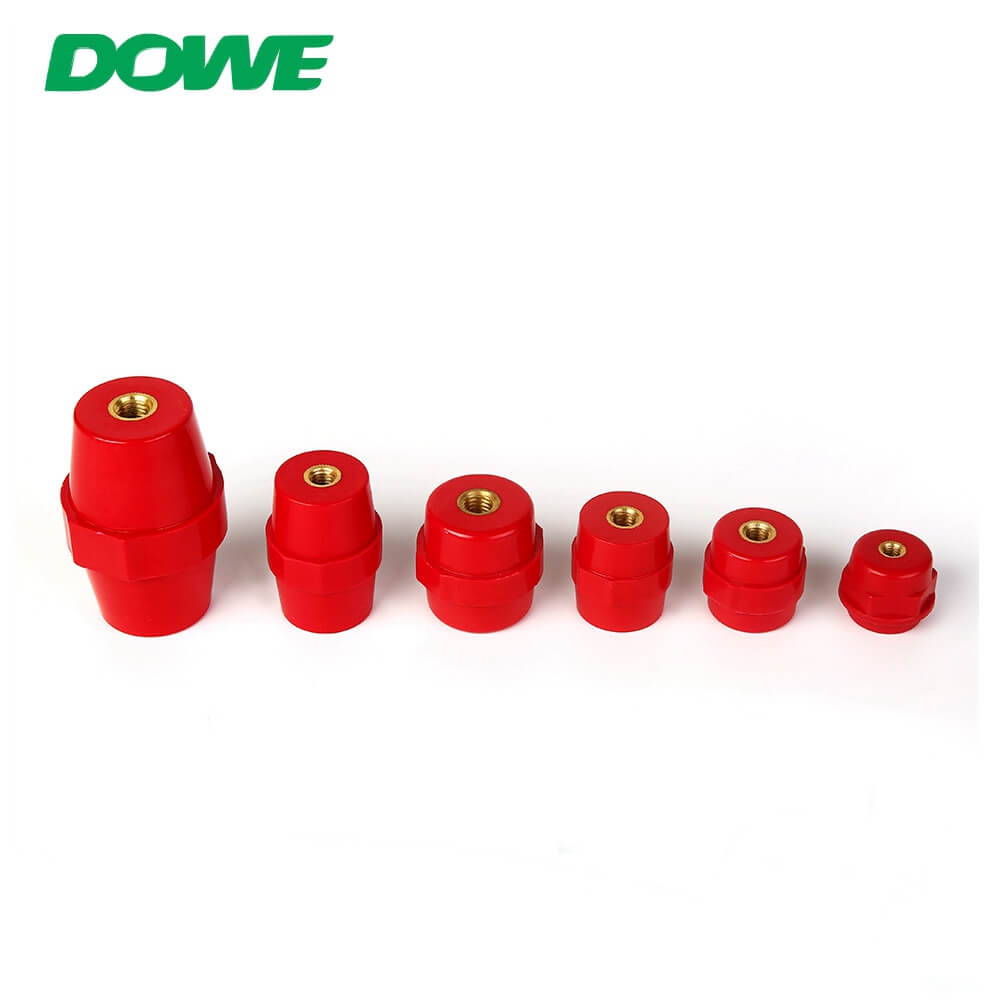

SM Busbar Insulator

SM busbar insulator is drum,made of DMC,used for low voltage application(660V-4500V),such as distribution box,switchgear,inverter and green power and so on.
CE,SGS,ROHS certificate for drum insulator.



Material / Materiale:

-Thread Insert / Inserto Filettato :
Steel With Zn Coating
Brass
Steel Coating Brass
-DMC (Doug Moulding Compound)
-SMC (Sheet Moulding Compound)
Colour / Colore :Red
Working Temperature / Temperatura d’esercizio : 40℃~140℃
Flammability / Autoestinguenza:V0

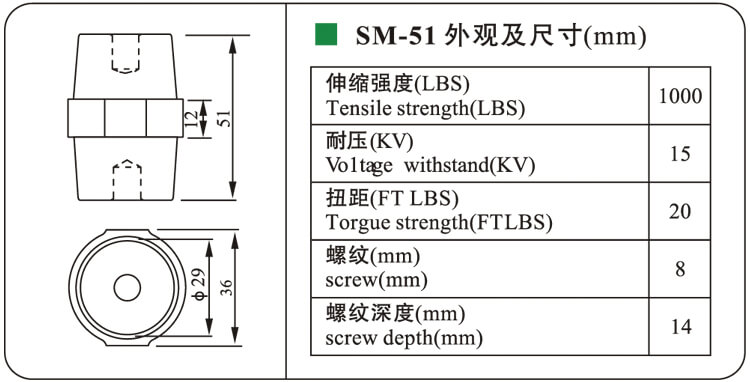

All dimensions are in mm /Tutte le quote sono in mm

Please confirm screw when order busbar insulator.Accepting OEM.



Application:

Low voltage busbar insulator are mainly used in low voltage power distribution cabinets, frequency converters, switchgear and other products.

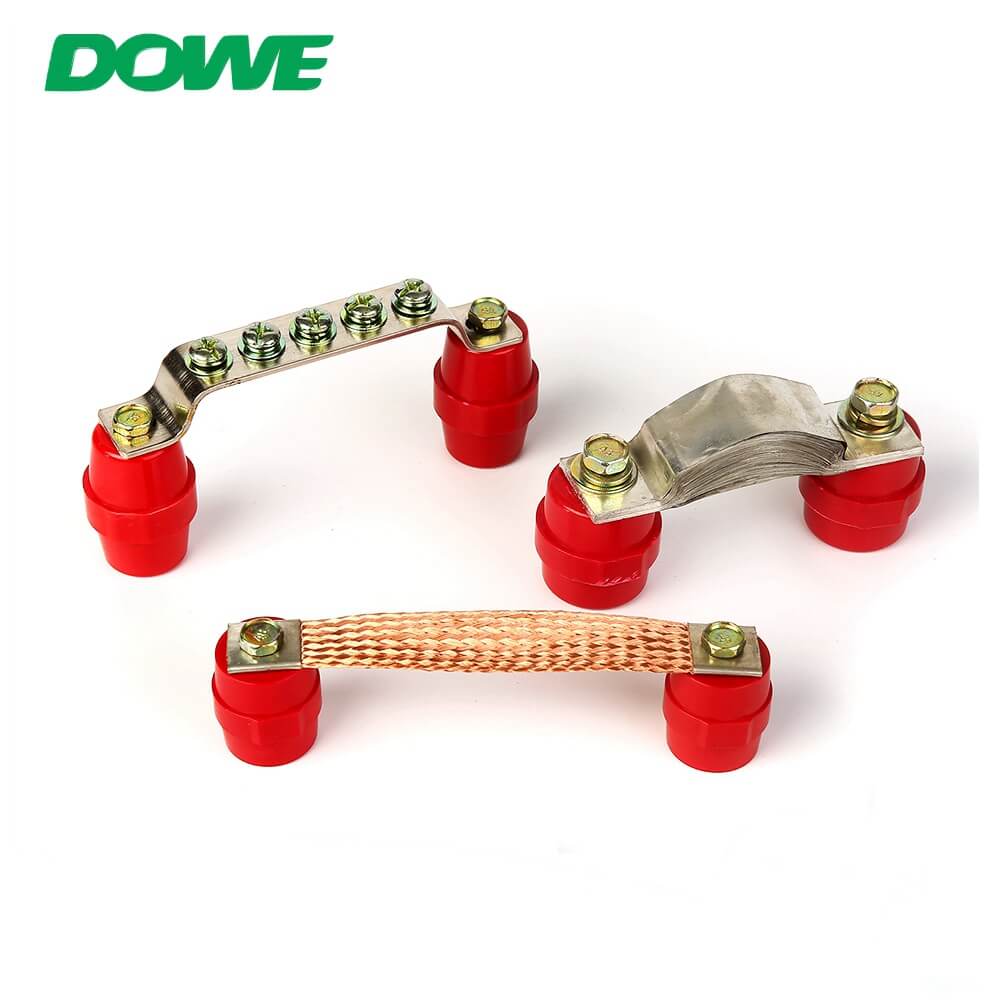

By connecting the busbar support copper, it plays a role of fixing, supporting and insulating.
Busbar support insulator has excellent insulation performance, high strength, high temperature resistance, reliable safety performance, and is a good choice for fixed busbar of low-voltage power distribution cabinets.



Our service

Delivery

By express/By sea/By air/By land transportation

Supply

5000pcs/week

Sample

The seller provides 2 samples for free, and the buyer pays the freight

Packing

By carton
