DUWAI CRIMP - Waterproof Heat Shrinkable Crimp Splices
APPLICATIONS
CRIMP is a heat shrinkable crimp splice produced by polyolefin with inner adhesive coated, and is used for the connection protection, water resistance and anti-corrosion. Can be fixed strongly and protects against vibration in rugged environments, and with good insulation protection for electronic connectors. Compared with conventional connectors, it has the advantages of durability, easy installation and a low installed cost.
OPERATING TEMPERATURE RANGE
- Continuous operating temperature: -55℃ ~ 125℃
- Minimum shrink temperature: 80℃
- Full recovery temperature: Above 130˚C
COLOR
Standard color: yellow, red and blue
- Shrink ratio: 3:1
- Polyamide hot melt adhesive provides excellent waterproof property
- Excellent ductility and mechanical damage resistance
- Excellent tensile strength
<table>
<tbody>
<tr>
<td colspan="2">
<p>Technical Data</p>
</td>
<td colspan="4">
<p> </p>
</td>
<td colspan="2">
<p> </p>
</td>
<td>
<p> </p>
</td>
</tr>
<tr>
<td colspan="2">
<p>Property</p>
</td>
<td colspan="4">
<p>Specification Requirement</p>
</td>
<td colspan="2">
<p>Test Method</p>
</td>
<td>
<p>Typical Value</p>
</td>
</tr>
<tr>
<td colspan="2">
<p>Dielectric voltage withstand</p>
</td>
<td colspan="4">
<p>AC2500V/60S<br />
No breakdown</p>
</td>
<td colspan="2">
<p>ASTM D2671</p>
</td>
<td>
<p>No breakdown</p>
</td>
</tr>
<tr>
<td colspan="2">
<p>Waterproof level</p>
</td>
<td colspan="4">
<p>No leakage</p>
</td>
<td colspan="2">
<p>IPX7(1M/1 hr)</p>
</td>
<td>
<p>Pass</p>
</td>
</tr>
<tr>
<td colspan="9">
<p>Specification</p>
</td>
</tr>
<tr>
<td colspan="9">
<p>Heat shrinkable butt splice connectors</p>
</td>
</tr>
<tr>
<td rowspan="2">
<p>Part Number.</p>
</td>
<td colspan="4">
<p>Nominal Size (mm)</p>
</td>
<td colspan="2">
<p>Wire Range</p>
</td>
<td colspan="2" rowspan="2">
<p>Standard Color</p>
</td>
</tr>
<tr>
<td colspan="2">
<p>A</p>
</td>
<td>
<p>B</p>
</td>
<td>
<p>L</p>
</td>
<td colspan="2">
<p>A.W.G (mm²)</p>
</td>
</tr>
<tr>
<td>
<p>GBS-1</p>
</td>
<td colspan="2">
<p>4.7</p>
</td>
<td>
<p>1.7</p>
</td>
<td>
<p>35</p>
</td>
<td colspan="2">
<p>22-18 (0.5-1.0)</p>
</td>
<td colspan="2">
<p>Red</p>
</td>
</tr>
<tr>
<td>
<p>GBS-2</p>
</td>
<td colspan="2">
<p>5.7</p>
</td>
<td>
<p>2.4</p>
</td>
<td>
<p>36</p>
</td>
<td colspan="2">
<p>16-14 (1.5-2.5)</p>
</td>
<td colspan="2">
<p>Blue</p>
</td>
</tr>
<tr>
<td>
<p>GBS-5</p>
</td>
<td colspan="2">
<p>6.7</p>
</td>
<td>
<p>3.6</p>
</td>
<td>
<p>42</p>
</td>
<td colspan="2">
<p>12-10 (4.0-6.0)</p>
</td>
<td colspan="2">
<p>Yellow</p>
</td>
</tr>
</tbody>
</table>

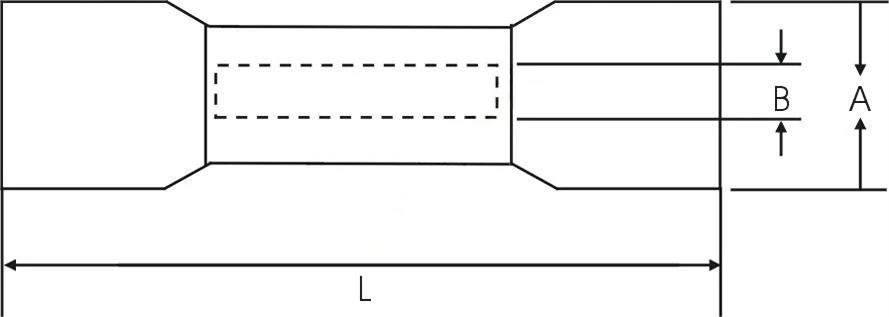

<p align="center"><img height="317" src="/uploads/2312/image-20231216145750-1.png" width="889" /></p>
<table>
<tbody>
<tr>
<td colspan="4">
<p>Heat shrinkable ring terminals</p>
</td>
</tr>
<tr>
<td rowspan="2">
<p>Part Number</p>
</td>
<td rowspan="2">
<p>Stud Size</p>
</td>
<td>
<p>Wire Range</p>
</td>
<td rowspan="2">
<p>Standard Color</p>
</td>
</tr>
<tr>
<td>
<p>A.W.G. (mm2)</p>
</td>
</tr>
<tr>
<td>
<p>RHS1-4</p>
</td>
<td>
<p># 8 ( 4.3mm)</p>
</td>
<td>
<p>22-16 (0.5-1.5)</p>
</td>
<td>
<p>Red</p>
</td>
</tr>
<tr>
<td>
<p>RHS2-4</p>
</td>
<td>
<p># 8 ( 4.3mm)</p>
</td>
<td>
<p>16-14 (1.5-2.5)</p>
</td>
<td>
<p>Blue</p>
</td>
</tr>
<tr>
<td>
<p>RHS5-5</p>
</td>
<td>
<p># 10 ( 5.3mm)</p>
</td>
<td>
<p>12-10 (4.0-6.0)</p>
</td>
<td>
<p>Yellow</p>
</td>
</tr>
</tbody>
</table>
<p> </p>
<table>
<tbody>
<tr>
<td colspan="4">
<p>Heat shrinkable spade terminals</p>
</td>
</tr>
<tr>
<td rowspan="2">
<p>Part Number</p>
</td>
<td rowspan="2">
<p>Stud Size</p>
</td>
<td>
<p>Wire Range</p>
</td>
<td rowspan="2">
<p>Standard Color</p>
</td>
</tr>
<tr>
<td>
<p>A.W.G. (mm2)</p>
</td>
</tr>
<tr>
<td>
<p>SHS1-4</p>
</td>
<td>
<p># 8 ( 4.3mm)</p>
</td>
<td>
<p>22-16 (0.5-1.0)</p>
</td>
<td>
<p>Red</p>
</td>
</tr>
<tr>
<td>
<p>SHS2-4</p>
</td>
<td>
<p># 8 ( 4.3mm)</p>
</td>
<td>
<p>16-14 (1.5-2.5)</p>
</td>
<td>
<p>Blue</p>
</td>
</tr>
<tr>
<td>
<p>SHS5-4</p>
</td>
<td>
<p># 8 ( 4.3mm)</p>
</td>
<td>
<p>12-10 (4.0-6.0)</p>
</td>
<td>
<p>Yellow</p>
</td>
</tr>
</tbody>
