DUWAI GAST-E - Solder Grip Closed End Connector Splices
APPLICATIONS
GAST-E closed end connector splices are designed for the wire terminal protection of multiple-wire combinations, replacing the traditional crimping closed end method. The product is composed of a PVDF high abrasion resistance heat shrinkable tubing, a solder sleeve for soldering, a spiral copper coil for winding wires, high performance hot melt adhesive for water resistance, and the easy identification colored glass bead for encapsulation. It makes the assembly of wire terminals become very easy and reliable.
COLOR
Standard color: yellow, green, red and blue
- Abrasion resistance property of PVDF outer layer
- Excellent chemical resistance
- Excellent insulation performance
- Flame retardant
<table>
<tbody>
<tr>
<td colspan="3">
<p>Technical Data</p>
</td>
<td colspan="3">
<p> </p>
</td>
<td colspan="3">
<p> </p>
</td>
</tr>
<tr>
<td colspan="3">
<p>Property</p>
</td>
<td colspan="3">
<p>Test Method</p>
</td>
<td colspan="3">
<p>Typical Value</p>
</td>
</tr>
<tr>
<td colspan="3">
<p>Waterproof level</p>
</td>
<td colspan="3">
<p>IPX7</p>
</td>
<td colspan="3">
<p>Pass</p>
</td>
</tr>
<tr>
<td colspan="3">
<p>Volume resistivity</p>
</td>
<td colspan="3">
<p>ASTM D2671</p>
</td>
<td colspan="3">
<p>≥1013Ω•cm</p>
</td>
</tr>
<tr>
<td colspan="3">
<p>Dielectric strength</p>
</td>
<td colspan="3">
<p>ASTM D2671</p>
</td>
<td colspan="3">
<p>2.0 kV/mm</p>
</td>
</tr>
<tr>
<td colspan="2">
<p>Specification</p>
</td>
<td colspan="5">
<p> </p>
</td>
<td colspan="2">
<p> </p>
</td>
</tr>
<tr>
<td rowspan="2">
<p>Part Number</p>
</td>
<td rowspan="2">
<p>Color Code</p>
</td>
<td colspan="5">

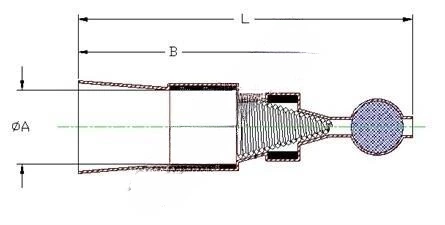

<p>Product Dimensions<br />
(mm)</p>
</td>
<td colspan="2">
<p>Wire Range</p>
</td>
</tr>
<tr>
<td colspan="2">
<p>L±3.5</p>
</td>
<td>
<p>ΦA</p>
</td>
<td colspan="2">
<p>B</p>
</td>
<td>
<p>Min (mm2)</p>
</td>
<td>
<p>Max (mm2)</p>
</td>
</tr>
<tr>
<td>
<p>GAST-E01</p>
</td>
<td>
<p>Green</p>
</td>
<td colspan="2">
<p>38.3</p>
</td>
<td>
<p>3.6 +0.4/-0.2</p>
</td>
<td colspan="2">
<p>26.0±2.0</p>
</td>
<td>
<p>0.7</p>
</td>
<td>
<p>2.4</p>
</td>
</tr>
<tr>
<td>
<p>GAST-E02</p>
</td>
<td>
<p>Red</p>
</td>
<td colspan="2">
<p>37.7</p>
</td>
<td>
<p>5.0 +0.7/-0.2</p>
</td>
<td colspan="2">
<p>23.5±2.0</p>
</td>
<td>
<p>2.0</p>
</td>
<td>
<p>4.0</p>
</td>
</tr>
<tr>
<td>
<p>GAST-E03</p>
</td>
<td>
<p>Blue</p>
</td>
<td colspan="2">
<p>45.5</p>
</td>
<td>
<p>7.5 +0.9/-0.2</p>
</td>
<td colspan="2">
<p>26.5±2.0</p>
</td>
<td>
<p>3.5</p>
</td>
<td>
<p>8.0</p>
</td>
</tr>
<tr>
<td>
<p>GAST-E04</p>
</td>
<td>
<p>Yellow</p>
</td>
<td colspan="2">
<p>45.0</p>
</td>
<td>
<p>9.4 +0.9/-0.3</p>
</td>
<td colspan="2">
<p>25.5±3.0</p>
</td>
<td>
<p>7.5</p>
</td>
<td>
<p>12.0</p>
</td>
</tr>
</tbody>
</table>
<p style="border-bottom: 1pt solid rgb(208, 208, 208); text-indent: 0pt; padding: 0pt 0pt 21pt; text-align: center;"><img height="225" src="/uploads/2312/image-20231216150817-8.png" width="445" /></p>
