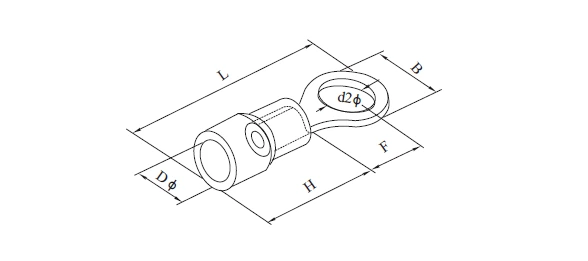

Technical Parameters

Item NO.

Aesthetic system

Bolt number

screw dia.
d2(mm)

Dimension

Color

B
(mm)

L
(mm)

F
(mm)

H
(mm)

D φ
(mm)

Cross -sectional area:
0.5~1.5mm² (22-16)
Maximum curren:Imax=19A

RV1.25-3

#4

3.2

5.7

17.8

4.95

10.0

4.3

Red

RVS1.25-3.5

#6

3.7

5.7

17.8

4.95

RVM1.25-3.5

#6

3.7

6.6

20.1

6.3

RVL1.25-3.5

#6

3.7

8.0

21.5

7.0

RVS1.25-4

#8

4.3

6.6

20.1

6.3

RVL1.25-4

#8

4.3

8.0

21.5

7.0

RV1.25-5

#10

5.3

8.0

21.5

7.0

RV1.25-6

1/4

6.5

11.6

27.5

11.1

RV1.25-8

5/16

8.4

11.6

27.5

11.1

RV1.25-10

3/8

10.5

13.6

31.6

13.9

Cross -sectional area:
1.5~2.5mm² (16~14)
   Maximum curren:Imax=27A

RV2-3

#4

3.2

6.6

17.8

4.3

10.0

4.9

blue

RVS2-3.5

#6

3.7

6.6

17.8

4.3

RVM2-3.5

#6

3.7

6.6

21.0

7.0

RVL2-3.5

#6

3.7

8.5

22.5

7.75

RVS2-4

#8

4.3

6.6

21.0

7.0

RVL2-4

#8

4.3

8.5

22.5

7.75

RVS2-5

#10

5.3

8.5

22.5

7.75

RVL2-5

#10

5.3

9.5

22.5

7.25

RV2-6

1/4

6.5

12.0

27.6

11.0

RV2-8

5/16

8.4

12.0

27.6

11.0

RV2-10

3/8

10.5

13.6

30.2

13.9

Cross -sectional area:
2.5~4mm² (14~12)
   Maximum curren:Imax=37A

RV3.5-4

#8

4.3

8.0

24.5

7.7

12.5

6.2

black

RVS3.5-5

#10

5.3

8.0

24.5

7.7

RVL3.5-5

#10

5.3

12.0

27.9

7.7

RV3.5-6

1/4

6.5

12.0

27.9

7.7

Cross -sectional area:
4~6mm² (12~10)
Maximum curren:Imax=48A

RV5.5-3.5

#6

3.7

7.2

21.4

5.9

12.5

6.7

yellow

RVS5.5-4

#8

4.3

7.2

21.5

5.9

RVL5.5-4

#8

4.3

9.5

25.5

8.3

RV5.5-5

#10

5.3

9.5

25.5

8.3

RV5.5-6

1/4

6.5

12.0

31.5

13.0

RV5.5-8

5/16

8.4

15.0

33.7

13.7

RV5.5-10

3/8

10.5

15.0

33.7

13.7

RV5.5-12

1/2

13.0

19.2

38.1

16.0
