Technical Parameters

Item NO.

Aesthetic system

Bolt number

screw dia.
d2(mm)

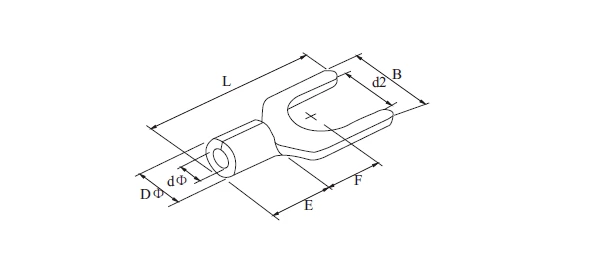

Dimension

B
(mm)

L
(mm)

F φ
(mm)

E φ
(mm)

D φ
(mm)

d φ
(mm)

Cross -sectional area:
0.5~1.5mm² (US line22~16)
Maximum current：Imax=19A

SNB 1.25-3

#4

3.2

5.7

16.0

6.5

4.8

3.4

1.7

SNBS 1.25-3.5

#6

3.7

5.7

16.0

6.5

SNBL 1.25-3.5

#6

3.7

6.4

16.0

6.5

SNBS 1.25-4

#8

4.3

6.4

16.0

6.5

SNBM 1.25-4

#8

4.3

7.2

16.0

6.5

SNBL 1.25-4

#8

4.3

8.1

16.0

6.5

SNBS 1.25-5

#10

5.3

8.1

16.0

6.5

SNBL 1.25-5

#10

5.3

9.5

16.0

6.5

SNBS 1.25-6

1／4

6.4

9.5

16.0

6.5

SNBL 1.25-6

1／4

6.4

12.0

22.0

11.0

Cross -sectional area：
1.5~2.5mm² (US line16~14)
Maximum current：Imax=27A

SNB 2-3

#4

3.2

5.7

16.0

6.5

4.8

4.1

2.3

SNBS 2-3.5

#6

3.7

5.7

16.0

6.5

SNBL 2-3.5

#6

3.7

6.4

16.0

6.5

SNBS 2-4

#8

4.3

6.4

16.0

6.5

SNBM 2-4

#8

4.3

7.2

16.0

6.5

SNBL 2-4

#8

4.3

8.1

16.0

6.5

SNBS 2-5

#10

5.3

8.1

16.0

6.5

SNBL 2-5

#10

5.3

9.5

16.0

6.5

SNBS 2-6

1／4

6.4

9.5

16.0

6.5

SNBL 2-6

1／4

6.4

12.0

22.0

11.0

Cross -sectional area：
2.5~4mm²(US line14~12)
Maximum current：Imax=37A

SNB 3.5-3

#4

3.2

5.7

18.3

7.0

6.0

5.0

3.0

SNB 3.5-4

#8

4.3

8.0

18.3

7.0

SNB 3.5-5

#10

5.3

8.0

18.3

7.0

SNB 3.5-6

1／4

6.4

12.0

21.5

12.1

Cross -sectional area：
4~6mm² (US line12~10)
Maximum current：Imax=48A

SNB 5.5-3.5

#8

3.7

8.3

19.5

7.5

6.8

5.6

3.4

SNBS 5.5-4

#10

4.3

8.3

19.5

7.5

SNBL 5.5-4

#8

4.3

9.0

19.5

7.5

SNB 5.5-5

#10

5.3

9.0

19.5

7.5

SNBS 5.5-6

1/4

6.4

9.0

19.5

7.5

SNBL 5.5-6

1/4

6.4

12.0

25.5

12.0

SNB 5.5-8

5/16

8.4

14.0

24.5

11.5

Cross -sectional area
6~10mm² (US line8)
Maximum current：Imax=62A

SNB 8-4

#8

4.3

8.7

23.0

6.0

8.5

7.2

4.5

SNB 8-5

#10

5.3

12.0

24.5

5.7

8.5

7.2

4.5

SNB 8-6

1/4

6.4

12.0

24.5

5.7

8.5

7.2

4.5

SNB 8-8

5/16

8.4

14.5

28.0

8.3

8.5

7.2

4.5

SNB 14-6

1/4

6.4

12.0

28.0

7.5

10.5

9.0

5.8

SNB 14-8

5/16

8.4

14.0

28.0

7.5

10.5

9.0

5.8

SNB 22-8

5/16

8.4

14.0

34.5

9.0

12.0

11.5

7.7
