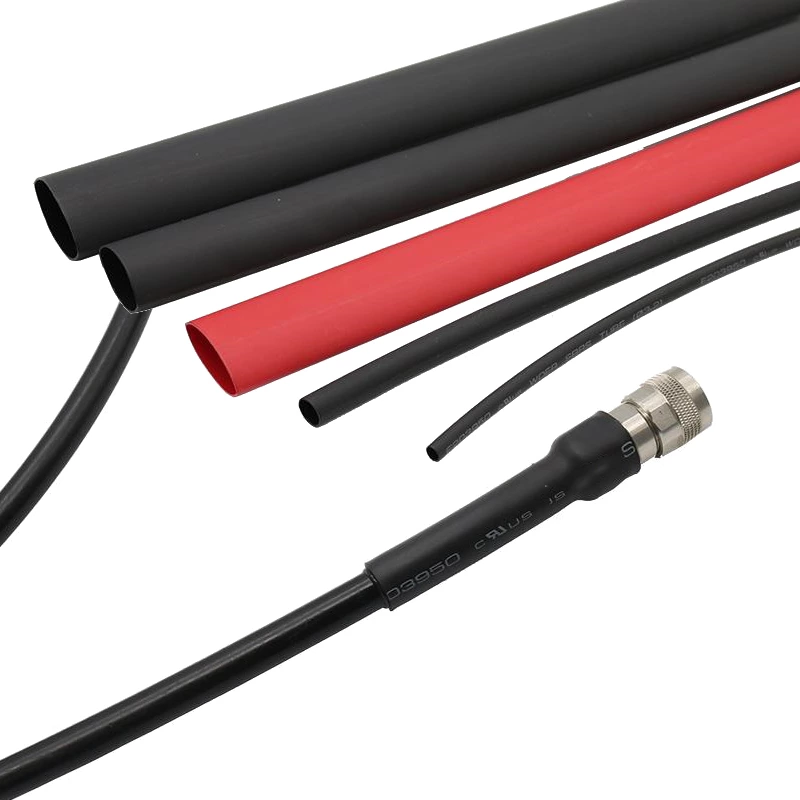

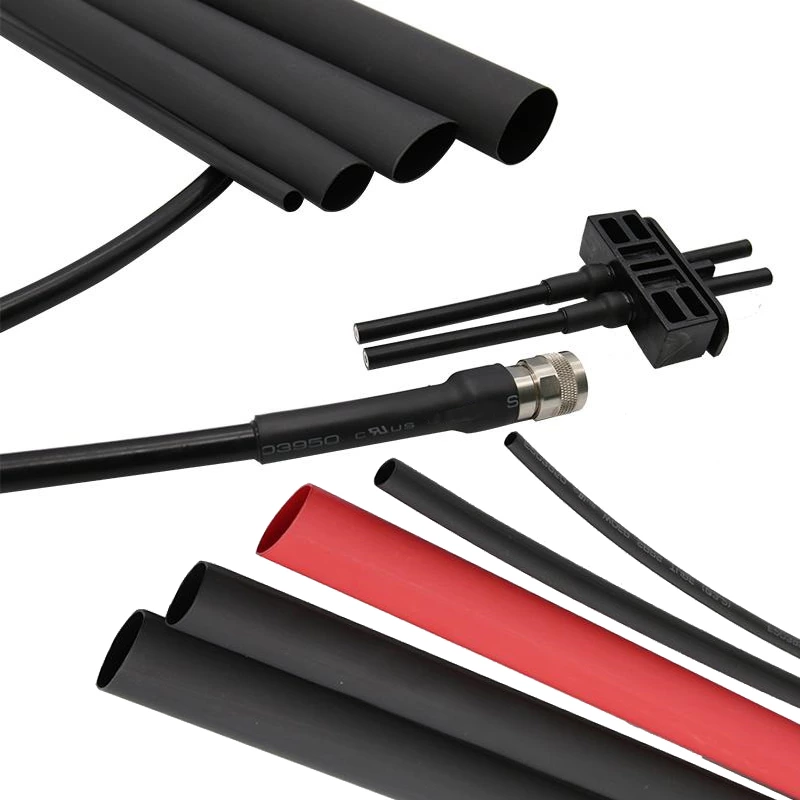

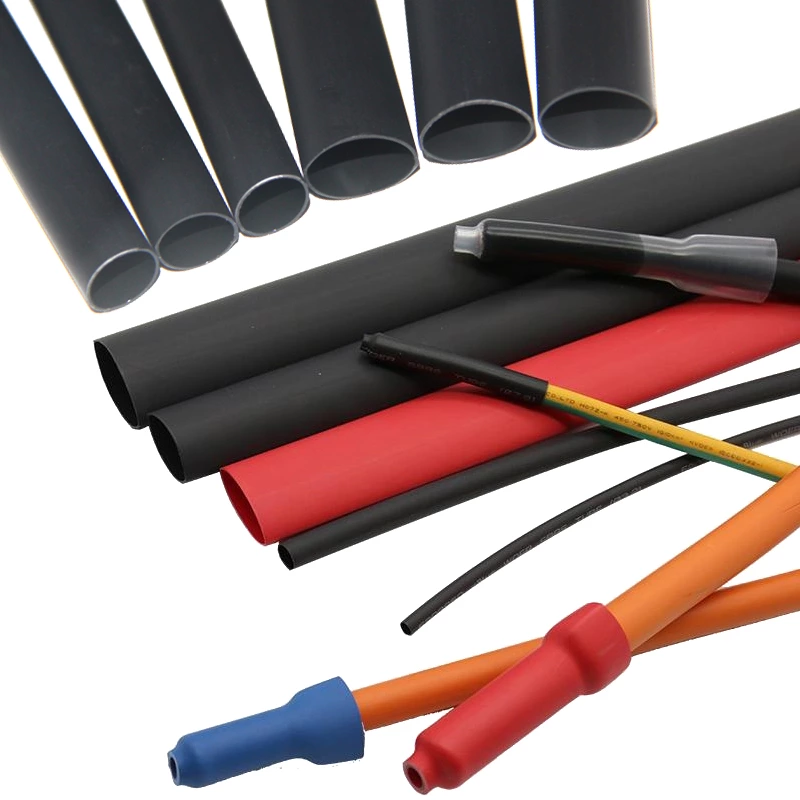

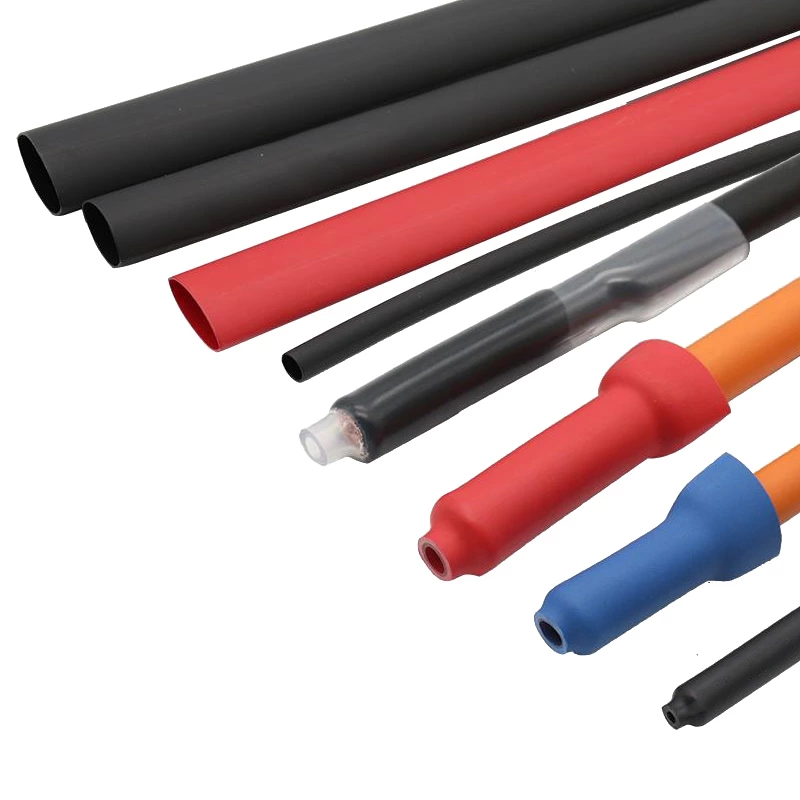

Flame retardant military standard double wall heat shrink tubing
Military standard double-wall heat shrink tubing is made of high-quality polyolefin and hot melt adhesive co-extrusion. The outer polyolefin is a highly flame-retardant insulating material with good s
- Operating Temperature:
- -45℃ to +135℃
- Minimum Shrinkage Temperature:
- 80℃
- Shrink Ratio:
- 3:1 & 4:1
- Standard Color:
- Black, red, blue, white, yellow, transparent (non-flame retardant)
- Environmental Protection Standards:
- RoHS
- Features
- Excellent hot melt adhesive and high shrink ratio provide excellent sealing properties
Military standard double-wall heat shrink tubing is made of high-quality polyolefin and hot melt adhesive co-extrusion. The outer polyolefin is a highly flame-retardant insulating material with good sealing and insulation properties, superior electrical and physical properties, and high flame retardancy. and other characteristics. It can complete moisture-proof sealing, insulation and mechanical protection in one go. Produced in accordance with military industry standards, the main functions are sealing, waterproof, moisture-proof, anti-corrosion, anti-leakage, multi-strand wire harness and insulation. Hot melt adhesive has good connection properties with plastics, rubber, and metals. It is mainly used for insulation, bundling and fixation of various types of wire harnesses, marine wires and cables and metal pipes that need to be sealed, waterproof, moisture-proof, and anti-corrosion. It is suitable for military standard level fields.
<table>
<tbody>
<tr>
<td colspan="3">
<p>Military standard double wall heat shrinkable tube outer layer technical indicators</p>
</td>
</tr>
<tr>
<td>
<p>performance</p>
</td>
<td>
<p>index</p>
</td>
<td>
<p>experiment method</p>
</td>
</tr>
<tr>
<td>
<p>Tensile Strength</p>
</td>
<td>
<p>≥12 MPa</p>
</td>
<td>
<p>ASTM D 2671</p>
</td>
</tr>
<tr>
<td>
<p>Elongation at break</p>
</td>
<td>
<p>≥300%</p>
</td>
<td>
<p>ASTM D 2671</p>
</td>
</tr>
<tr>
<td>
<p>Strength after aging</p>
</td>
<td>
<p>≥8.4 MPa</p>
</td>
<td>
<p>175℃×168h</p>
</td>
</tr>
<tr>
<td>
<p>Elongation at break after aging</p>
</td>
<td>
<p>≥100%</p>
</td>
<td>
<p>175℃×168h</p>
</td>
</tr>
<tr>
<td>
<p>axial change rate</p>
</td>
<td>
<p>-8%~+8%</p>
</td>
<td>
<p>ASTM D 2671</p>
</td>
</tr>
<tr>
<td>
<p>Flame retardancy</p>
</td>
<td>
<p>pass</p>
</td>
<td>
<p>ASTM D 2671 B method</p>
</td>
</tr>
<tr>
<td>
<p>Thermal shock</p>
</td>
<td>
<p>No cracks, no dripping</p>
</td>
<td>
<p>ASTM D 2671(250℃×4h)</p>
</td>
</tr>
<tr>
<td>
<p>Cold bending flexibility</p>
</td>
<td>
<p>No cracks</p>
</td>
<td>
<p>ASTM D 2671(-45℃/4h）</p>
</td>
</tr>
<tr>
<td>
<p>water absorption</p>
</td>
<td>
<p>0.50%</p>
</td>
<td>
<p>ASTM D 570</p>
</td>
</tr>
<tr>
<td>
<p>Breakdown strength</p>
</td>
<td>
<p>≥15 MV/m</p>
</td>
<td>
<p>IEC 60243</p>
</td>
</tr>
<tr>
<td>
<p>Volume resistivity</p>
</td>
<td>
<p>≥1014 Ω·cm</p>
</td>
<td>
<p>IEC 60093</p>
</td>
</tr>
<tr>
<td colspan="3">
<p>Military standard double-wall heat shrinkable tube hot melt adhesive technical indicators</p>
</td>
</tr>
<tr>
<td>
<p>performance</p>
</td>
<td>
<p>index</p>
</td>
<td>
<p>experiment method</p>
</td>
</tr>
<tr>
<td>
<p>Softening Point</p>
</td>
<td>
<p>90±5℃</p>
</td>
<td>
<p>ASTM E 28</p>
</td>
</tr>
<tr>
<td>
<p>water absorption</p>
</td>
<td>
<p>＜0.5%</p>
</td>
<td>
<p>ASTM D 570</p>
</td>
</tr>
<tr>
<td>
<p>Peel strength (PE)</p>
</td>
<td>
<p>120N/25mm</p>
</td>
<td>
<p>ASTM D 1000</p>
</td>
</tr>
<tr>
<td>
<p>Peel strength (Al)</p>
</td>
<td>
<p>80N/25mm</p>
</td>
<td>
<p>ASTM D 1000</p>
</td>
</tr>
</tbody>
</table>
<p> </p>
<table>
<tbody>
<tr>
<td colspan="7">
<p>Specification table of 3 times military standard double-wall heat shrinkable tube with glue</p>
</td>
</tr>
<tr>
<td rowspan="2">
<p>Specifications (mm)</p>
</td>
<td>
<p>Before shrinkage (mm)</p>
</td>
<td colspan="3">
<p>After shrinkage (mm)</p>
</td>
<td colspan="2">
<p>Packing</p>
</td>
</tr>
<tr>
<td>
<p>the inside diameter of</p>
</td>
<td>
<p>the inside diameter of</p>
</td>
<td>
<p>total wall thickness</p>
</td>
<td>
<p>Glue thickness</p>
</td>
<td>
<p>meters/section</p>
</td>
<td>
<p>meters/roll</p>
</td>
</tr>
<tr>
<td>
<p>5F（3X） φ3/1</p>
</td>
<td>
<p>≥3</p>
</td>
<td>
<p>1</p>
</td>
<td>
<p>1</p>
</td>
<td>
<p>0.5</p>
</td>
<td>
<p>1.22</p>
</td>
<td>
<p>200</p>
</td>
</tr>
<tr>
<td>
<p>5F（3X）φ4.8/1.5</p>
</td>
<td>
<p>≥4.8</p>
</td>
<td>
<p>1.5</p>
</td>
<td>
<p>1</p>
</td>
<td>
<p>0.5</p>
</td>
<td>
<p>1.22</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>5F（3X） φ6/2</p>
</td>
<td>
<p>≥6</p>
</td>
<td>
<p>2</p>
</td>
<td>
<p>1</p>
</td>
<td>
<p>0.5</p>
</td>
<td>
<p>1.22</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>5F（3X） φ7.9</p>
</td>
<td>
<p>≥7.9</p>
</td>
<td>
<p>2.7</p>
</td>
<td>
<p>1.35</p>
</td>
<td>
<p>0.5</p>
</td>
<td>
<p>1.22</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>5F（3X） φ9/3</p>
</td>
<td>
<p>≥9</p>
</td>
<td>
<p>3</p>
</td>
<td>
<p>1.4</p>
</td>
<td>
<p>0.6</p>
</td>
<td>
<p>1.22</p>
</td>
<td>
<p>50</p>
</td>
</tr>
<tr>
<td>
<p>5F（3X） φ12/4</p>
</td>
<td>
<p>≥12</p>
</td>
<td>
<p>4</p>
</td>
<td>
<p>1.6</p>
</td>
<td>
<p>0.8</p>
</td>
<td>
<p>1.22</p>
</td>
<td>
<p>25</p>
</td>
</tr>
<tr>
<td>
<p>5F（3X） φ19/6</p>
</td>
<td>
<p>≥19</p>
</td>
<td>
<p>6</p>
</td>
<td>
<p>2.15</p>
</td>
<td>
<p>0.8</p>
</td>
<td>
<p>1.22</p>
</td>
<td>
<p>25</p>
</td>
</tr>
<tr>
<td>
<p>5F（3X） φ24/8</p>
</td>
<td>
<p>≥24</p>
</td>
<td>
<p>8</p>
</td>
<td>
<p>2.4</p>
</td>
<td>
<p>1.05</p>
</td>
<td>
<p>1.22</p>
</td>
<td>
<p>25</p>
</td>
</tr>
<tr>
<td>
<p>5F（3X） φ30/10</p>
</td>
<td>
<p>≥30</p>
</td>
<td>
<p>10</p>
</td>
<td>
<p>2.4</p>
</td>
<td>
<p>1.05</p>
</td>
<td>
<p>1.22</p>
</td>
<td>
<p>25</p>
</td>
</tr>
<tr>
<td>
<p>5F（3X） φ40/13</p>
</td>
<td>
<p>≥40</p>
</td>
<td>
<p>13</p>
</td>
<td>
<p>2.4</p>
</td>
<td>
<p>1.05</p>
</td>
<td>
<p>1.22</p>
</td>
<td>
<p>25</p>
</td>
</tr>
<tr>
<td>
<p>5F（3X） φ50/19</p>
</td>
<td>
<p>≥50</p>
</td>
<td>
<p>19</p>
</td>
<td>
<p>2.4</p>
</td>
<td>
<p>1.05</p>
</td>
<td>
<p>1.22</p>
</td>
<td>
<p>25</p>
</td>
</tr>
<tr>
<td colspan="7">
<p>Specification table of 4 times military standard double-wall heat shrinkable tube with glue</p>
</td>
</tr>
<tr>
<td rowspan="2">
<p>Specifications (mm)</p>
</td>
<td>
<p>Before shrinkage (mm)</p>
</td>
<td colspan="3">
<p>After shrinkage (mm)</p>
</td>
<td colspan="2">
<p>Packing</p>
</td>
</tr>
<tr>
<td>
<p>the inside diameter of</p>
</td>
<td>
<p>the inside diameter of</p>
</td>
<td>
<p>total wall thickness</p>
</td>
<td>
<p>Glue thickness</p>
</td>
<td>
<p>meters/section</p>
</td>
<td>
<p>meters/roll</p>
</td>
</tr>
<tr>
<td>
<p>5F（4X） φ4/1</p>
</td>
<td>
<p>≥4</p>
</td>
<td>
<p>1</p>
</td>
<td>
<p>1</p>
</td>
<td>
<p>0.5</p>
</td>
<td>
<p>1.22</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>5F（4X） φ6/1.5</p>
</td>
<td>
<p>≥6</p>
</td>
<td>
<p>1.5</p>
</td>
<td>
<p>1</p>
</td>
<td>
<p>0.6</p>
</td>
<td>
<p>1.22</p>
</td>
<td>
<p>100</p>
</td>
</tr>
<tr>
<td>
<p>5F（4X） φ8/2</p>
</td>
<td>
<p>≥8</p>
</td>
<td>
<p>2</p>
</td>
<td>
<p>1</p>
</td>
<td>
<p>0.75</p>
</td>
<td>
<p>1.22</p>
</td>
<td>
<p>50</p>
</td>
</tr>
<tr>
<td>
<p>5F（4X） φ12/3</p>
</td>
<td>
<p>≥12</p>
</td>
<td>
<p>3</p>
</td>
<td>
<p>1.4</p>
</td>
<td>
<p>1</p>
</td>
<td>
<p>1.22</p>
</td>
<td>
<p>25</p>
</td>
</tr>
<tr>
<td>
<p>5F（4X） φ16/4</p>
</td>
<td>
<p>≥16</p>
</td>
<td>
<p>4</p>
</td>
<td>
<p>1.6</p>
</td>
<td>
<p>1.05</p>
</td>
<td>
<p>1.22</p>
</td>
<td>
<p>25</p>
</td>
</tr>
<tr>
<td>
<p>5F（4X）φ20/5</p>
</td>
<td>
<p>≥20</p>
</td>
<td>
<p>5</p>
</td>
<td>
<p>2.4</p>
</td>
<td>
<p>1.2</p>
</td>
<td>
<p>1.22</p>
</td>
<td>
<p>25</p>
</td>
</tr>
<tr>
<td>
<p>5F（4X） φ24/6</p>
</td>
<td>
<p>≥24</p>
</td>
<td>
<p>6</p>
</td>
<td>
<p>2.15</p>
</td>
<td>
<p>1.25</p>
</td>
<td>
<p>1.22</p>
</td>
<td>
<p>25</p>
</td>
</tr>
<tr>
<td>
<p>5F（4X） φ32/8</p>
</td>
<td>
<p>≥32</p>
</td>
<td>
<p>8</p>
</td>
<td>
<p>2.4</p>
</td>
<td>
<p>1.25</p>
</td>
<td>
<p>1.22</p>
</td>
<td>
<p>25</p>
</td>
</tr>
<tr>
<td>
<p>5F（4X） φ52/13</p>
</td>
<td>
<p>≥52</p>
</td>
<td>
<p>13</p>
</td>
<td>
<p>2.4</p>
</td>
<td>
<p>1</p>
</td>
<td>
<p>1.22</p>
</td>
<td>
<p>—</p>
</td>
</tr>
</tbody>
</table>
