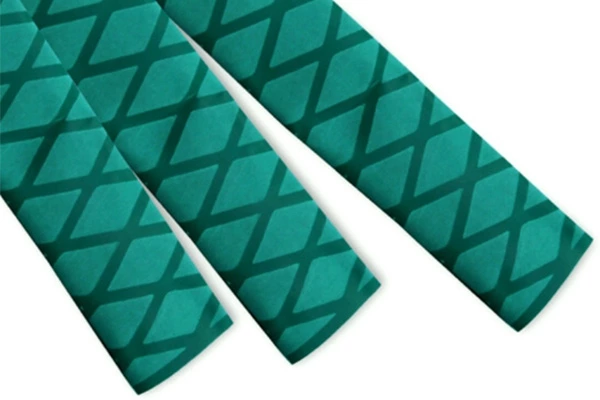

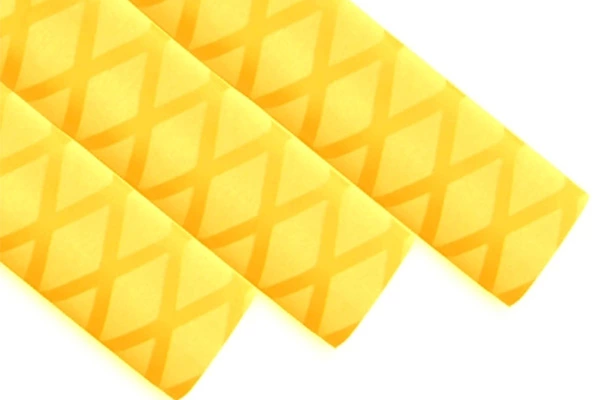

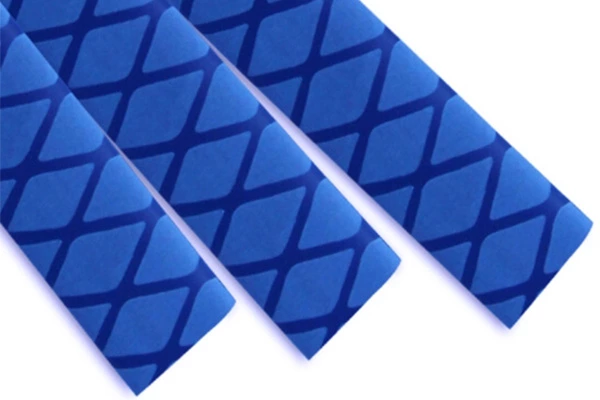

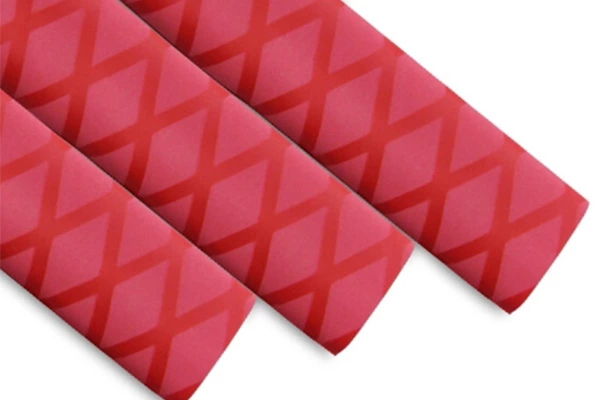

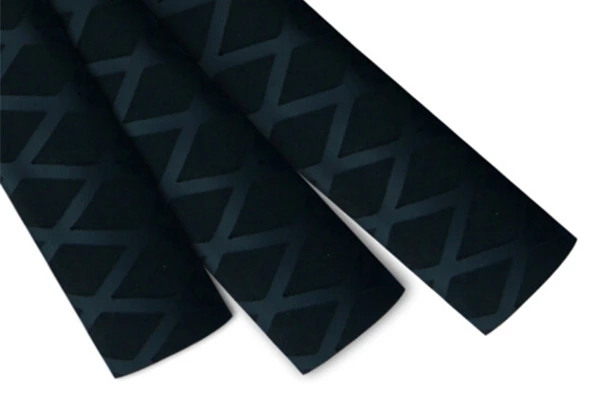

Anti-slip pattern heat shrink tube
The anti-skid pattern heat shrinkable tube is made of high-quality polymer, scientifically formulated and processed with advanced technology.
- Operating Temperature:
- -55℃-105℃
- Minimum Shrinkage Temperature:
- 70℃
- Standard Color:

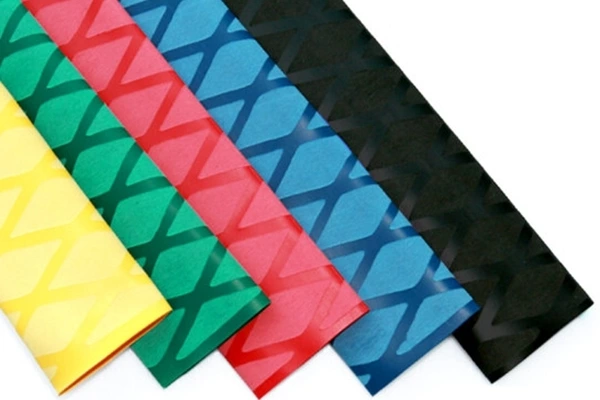

- Black, Red, Yellow, Green, Blue
- Environmental Protection Standards:
- RoHS
- Tensile Strength:
- 10.4MPa
- Features
- Environmentally friendly, soft, non-slip, beautiful, fast shrinking, easy to use, it can be shrunk by heating with an oven, hot air gun or hot water
The anti-skid pattern heat shrinkable tube is made of high-quality polymer, scientifically formulated and processed with advanced technology. The anti-skid patterned heat shrink tube has a grinding pattern on its surface, which can play an anti-slip role and has a soft hand feel. It is a heat shrinkable tube specially developed to protect high-end fishing rods and improve the quality of fishing rods to achieve diversity in the appearance of fishing rods. It is made of PE main material. This product has excellent features such as environmental protection, softness, non-slip, beautiful appearance, fast shrinkage and stable performance. It is widely used in high-end fishing tackle, sports equipment, fitness equipment, daily necessities and other fields. The surface has undergone special grinding treatment, which not only improves the feel, but also makes the product more beautiful and enhances the high-end feel.
|
Specification table of anti-skid pattern heat shrink tube |
|||||
|
Specification（mm） |
Size before shrinkage（mm） |
Fully shrunk size(mm） |
Packag meters/section |
||
|
Product inner diameter |
average wall thickness |
Maximum inner diameter |
average wall thickness |
||
|
φ15 |
≥15 |
0.45±0.15 |
8 |
0.85±0.15 |
1 |
|
φ20 |
≥20 |
0.50±0.15 |
11 |
0.90±0.15 |
0.8/1.0/1.6 |
|
φ22 |
≥22 |
0.50±0.15 |
12.5 |
0.90±0.15 |
0.8/1.0/1.6 |
|
φ25 |
≥25 |
0.50±0.15 |
14.5 |
1.00±0.15 |
0.8/1.0/1.6 |
|
φ28 |
≥28 |
0.50±0.15 |
15.5 |
1.00±0.15 |
0.8/1.0/1.6 |
|
φ30 |
≥30 |
0.60±0.15 |
17.5 |
1.20±0.15 |
0.8/1.0/1.6 |
|
φ35 |
≥35 |
0.60±0.15 |
20 |
1.20±0.15 |
0.8/1.0/1.6 |
|
φ40 |
≥40 |
0.60±0.15 |
23 |
1.20±0.15 |
0.8/1.0/1.6 |
|
φ45 |
≥45 |
0.65±0.15 |
25 |
1.25±0.15 |
0.8/1.0/1.6 |
|
φ50 |
≥50 |
0.65±0.15 |
28 |
1.25±0.15 |
0.8/1.0/1.6 |
