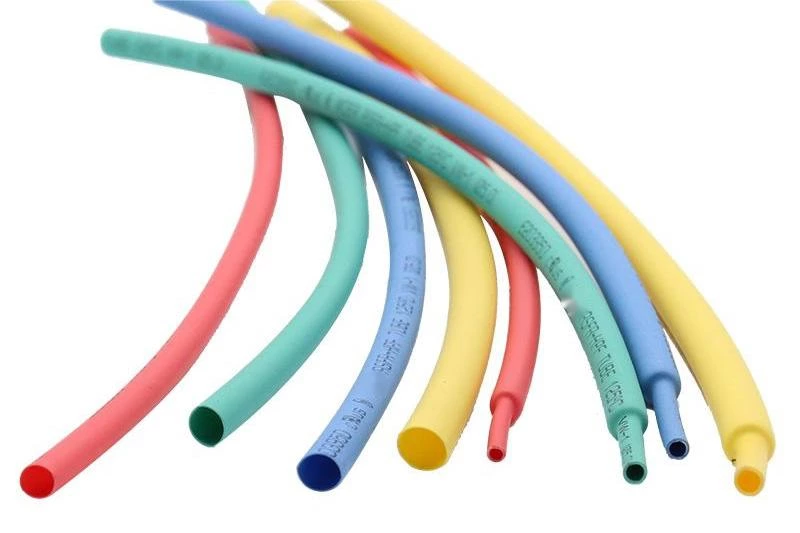

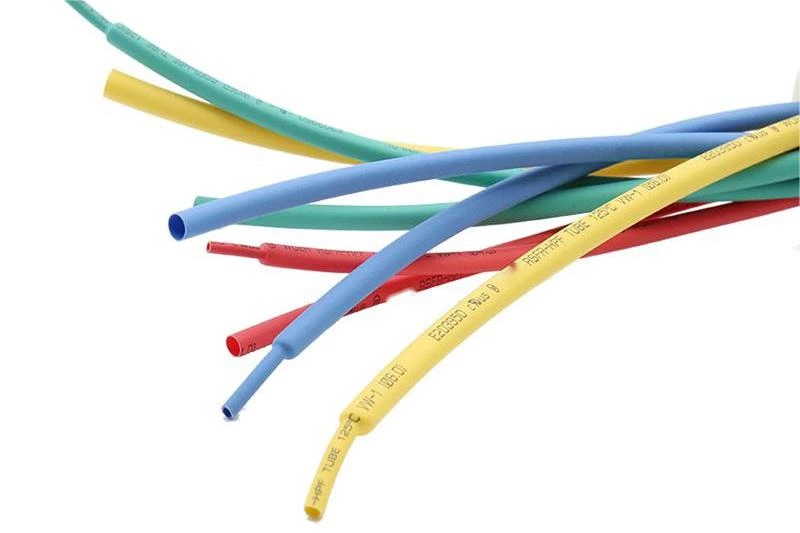

Halogen-free and red phosphorus-free heat shrinkable tube

Halogen-free and red phosphorus-free heat shrinkable tubes have a higher environmental protection level and do not contain halogens and red phosphorus. Today, with increasingly stringent environmental protection requirements, halogen-free and red phosphorus-free heat shrinkable tubes will be more widely used.

Operating Temperature:: -55℃ to +125℃
Minimum Shrinkage Temperature:: 70℃-100℃
Shrink Ratio:: 2:1
Standard Color:: Black, White (other colors can be customized)
Environmental Protection Standards:: Halogen-free, red phosphorus-free
Withstand Voltage Level:: 600V, ultra-thin type withstand voltage level 300V

Inquiry

Halogen-free and red phosphorus-free heat shrinkable tube

Halogen-free and red phosphorus-free heat shrinkable tubing is made of radiation cross-linked polyolefin material. It has excellent performance, low smoke and low toxicity when burning. It is suitable for wire insulation, solder joint rust prevention, mechanical protection and other high-end fire safety and environmental protection requirements. Wire harnesses are widely used in modern high-tech industries such as subway stations, high-speed trains, aircraft, and IT digital product manufacturing. They have a high environmental protection level and do not contain red phosphorus. They do not produce phosphoric acid or phosphine in high temperature and high humidity environments, making them safe and reliable. It has high performance and is an upgraded product for all H-type and G-type materials. Halogen-free and red phosphorus-free heat shrinkable tubes have a higher environmental protection level and do not contain halogens and red phosphorus. Today, with increasingly stringent environmental protection requirements, halogen-free and red phosphorus-free heat shrinkable tubes will be more widely used.

Performance test data of halogen-free and red phosphorus-free heat shrinkable tubes
performance	index	experiment method
Tensile Strength	≥10.4 MPa	GB/T1040
Elongation at break	≥200%	GB/T1040
Tensile strength after aging	≥7.3 MPa	158℃×168h
Elongation at break after aging	≥100%	158℃×168h
Resistance to cold bending	No cracking	UL224(-30℃×1 h)
Rated voltage	2500V No breakdown	UL224
Breakdown strength	≥15kV/mm	GB/T1408
Volume resistivity	≥1×1014 Ω·cm	GB/T1410
Copper stability	pass	UL224(158℃×168h)
Corrosion resistance	pass	UL224，158℃×168h
Flame retardancy	VW-1	UL224

Specification table of halogen-free and red phosphorus-free heat shrinkable tubing
Specification	Supply inner diameter(mm)	Fully reduced size(mm)		Packing	Applicable wire diameter range
(mm)	Supply inner diameter(mm)	the inside diameter of	wall thickness	meters/roll	(mm)
Φ0.6	0.9±0.2	≤0.40	0.33±0.10	200	0.50~0.70
Φ0.8	1.1±0.2	≤0.50	0.33±0.10	200	0.65~0.80
Φ1.0	1.5±0.2	≤0.65	0.36±0.10	200	0.85~0.90
Φ1.5	2.0±0.2	≤0.85	0.36±0.10	200	1.0~1.3
Φ2.0	2.5±0.2	≤1.00	0.45±0.10	200	1.3~1.8
Φ2.5	3.0±0.2	≤1.30	0.45±0.10	200	1.5~2.3
Φ3.0	3.5±0.2	≤1.50	0.45±0.10	200	1.8~2.8
Φ3.5	4.0±0.2	≤1.80	0.45±0.10	200	2.0~3.3
Φ4.0	4.7±0.2	≤2.00	0.45±0.10	200	2.3~3.8
Φ4.5	5.0±0.2	≤2.30	0.45±0.10	100	2.5~4.5
Φ5.0	5.5±0.2	≤2.5	0.56±0.10	100	3.0~4.8
Φ6.0	6.5±0.2	≤3.0	0.56±0.10	100	3.5~5.3
Φ7	7.5±0.3	≤3.5	0.56±0.10	100	4.0~6.3
Φ8	8.5±0.3	≤4.0	0.56±0.10	100	4.5~7.2
Φ9	9.5±0.3	≤4.5	0.56±0.10	100	5.0~8.2
Φ10	10.5±0.3	≤5.0	0.56±0.10	100	5.5~9.2
Φ12	12.5±0.3	≤6.0	0.56±0.10	100	6.5~10.2
Φ14	14.5±0.3	≤7.0	0.70±0.10	100	7.5~12.2
Φ15	15.5±0.4	≤7.5	0.70±0.10	100	8.0~14.2
Φ16	16.5±0.4	≤8.0	0.70±0.10	100	8.5~15.2
Φ18	19.0±0.5	≤9.0	0.70±0.10	100	10.0~16.1
Φ20	22.0±0.5	≤10.0	0.80±0.10	100	10.4~18.5
Φ22	24.0±0.5	≤11.0	0.80±0.15	100	12.5~21.5
Φ25	26.0±0.5	≤12.5	0.90±0.15	50	14.0~23.5
Φ28	29.0±0.5	≤14.0	0.90±0.15	50	15.0~25.5
Φ30	31.5±1.5	≤15.0	1.00±0.15	50	17.5~28.5
Φ35	36.5±1.5	≤17.5	1.00±0.15	50	20~30
Φ40	41.5±1.5	≤20.0	1.00±0.15	50	21~35
